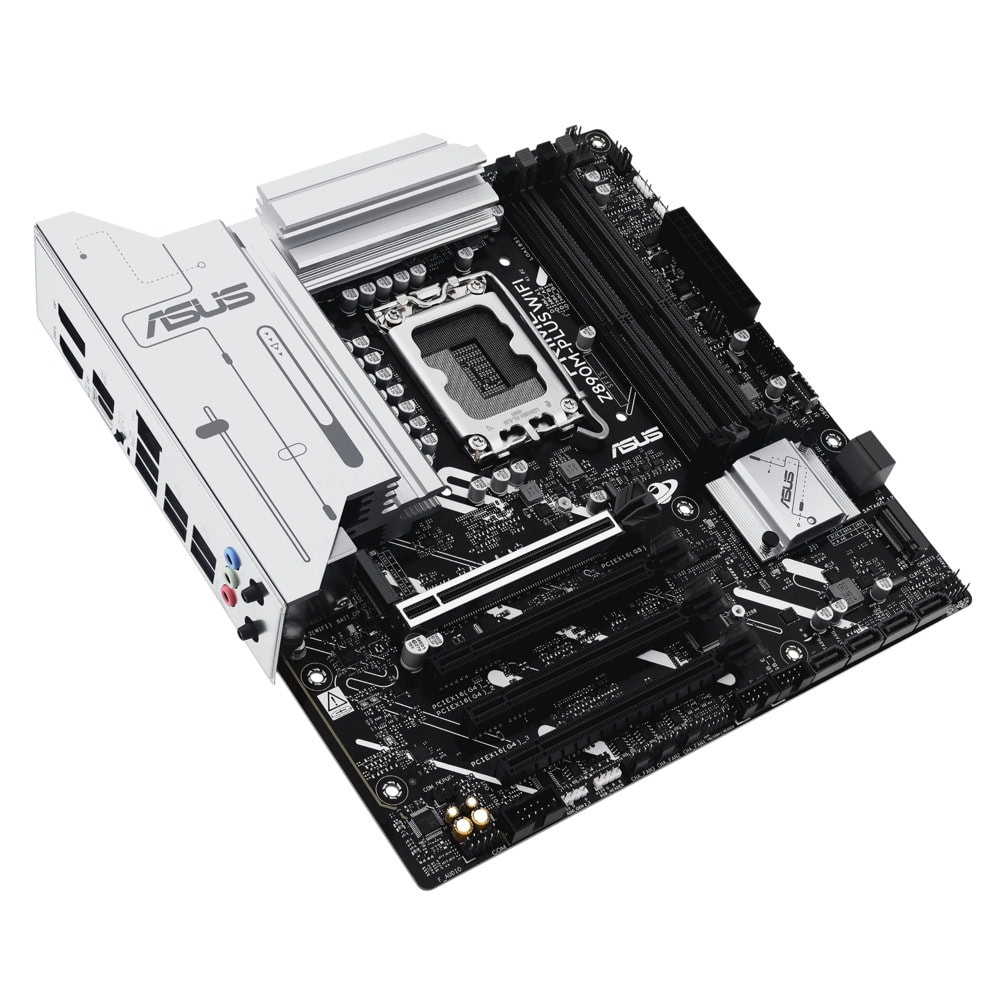

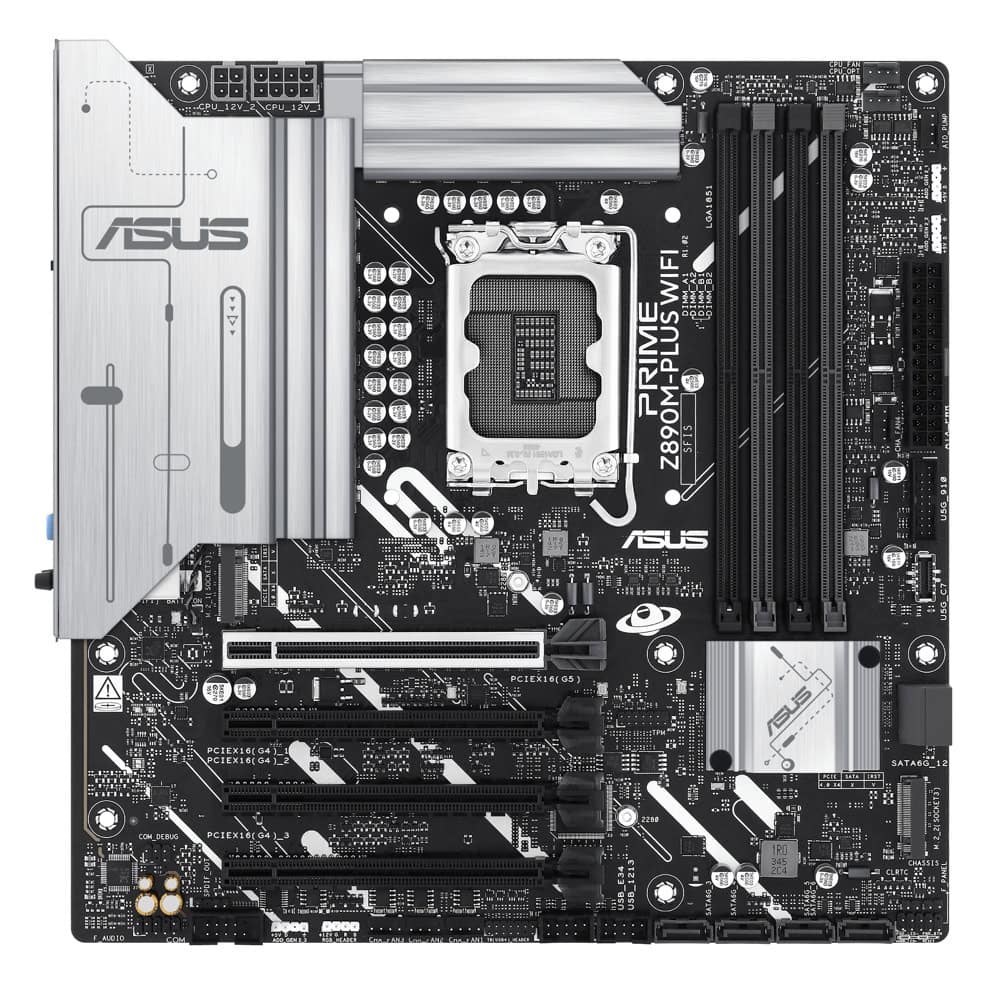

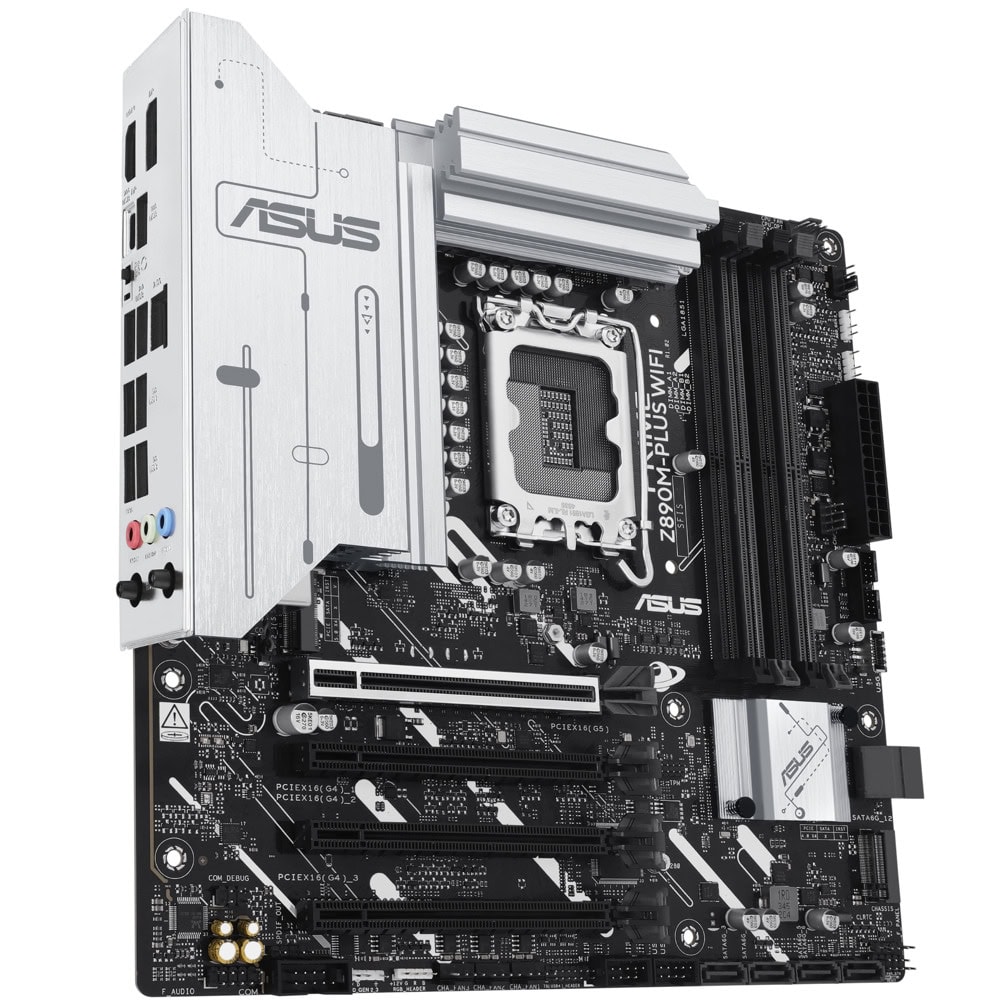

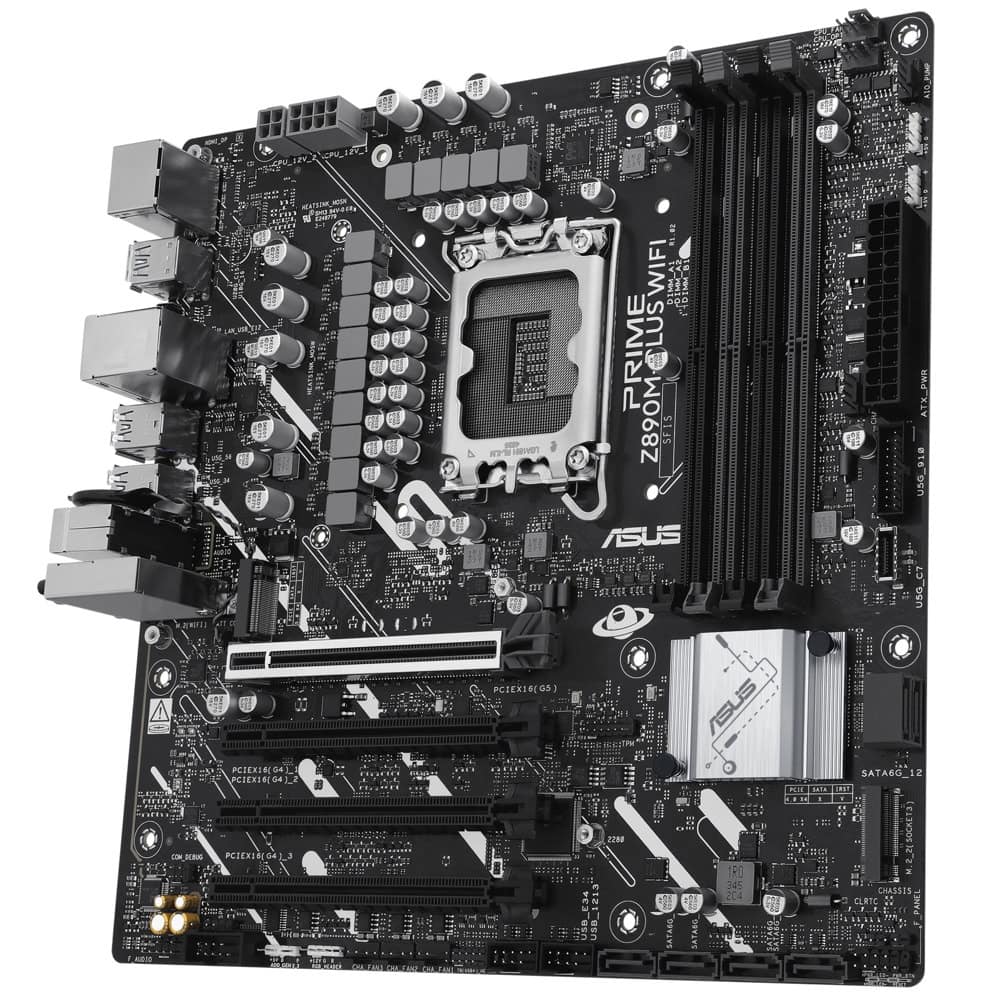

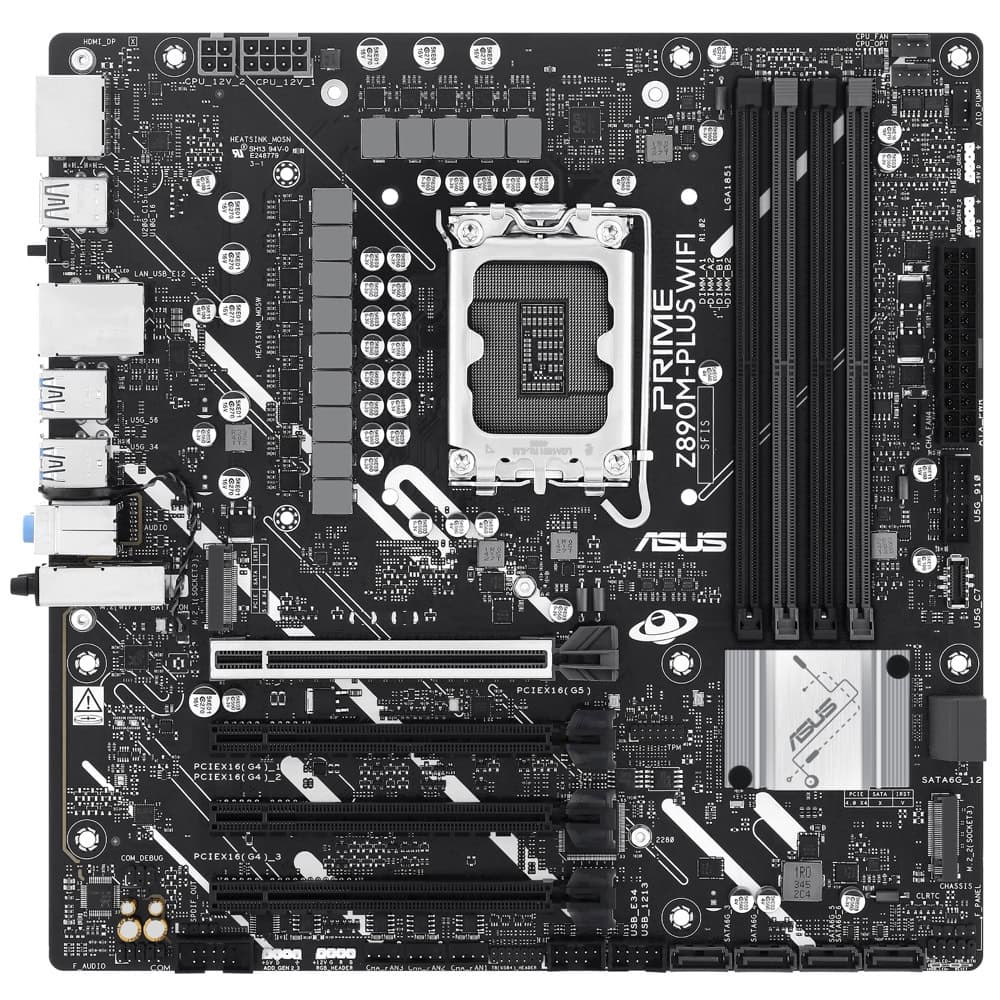

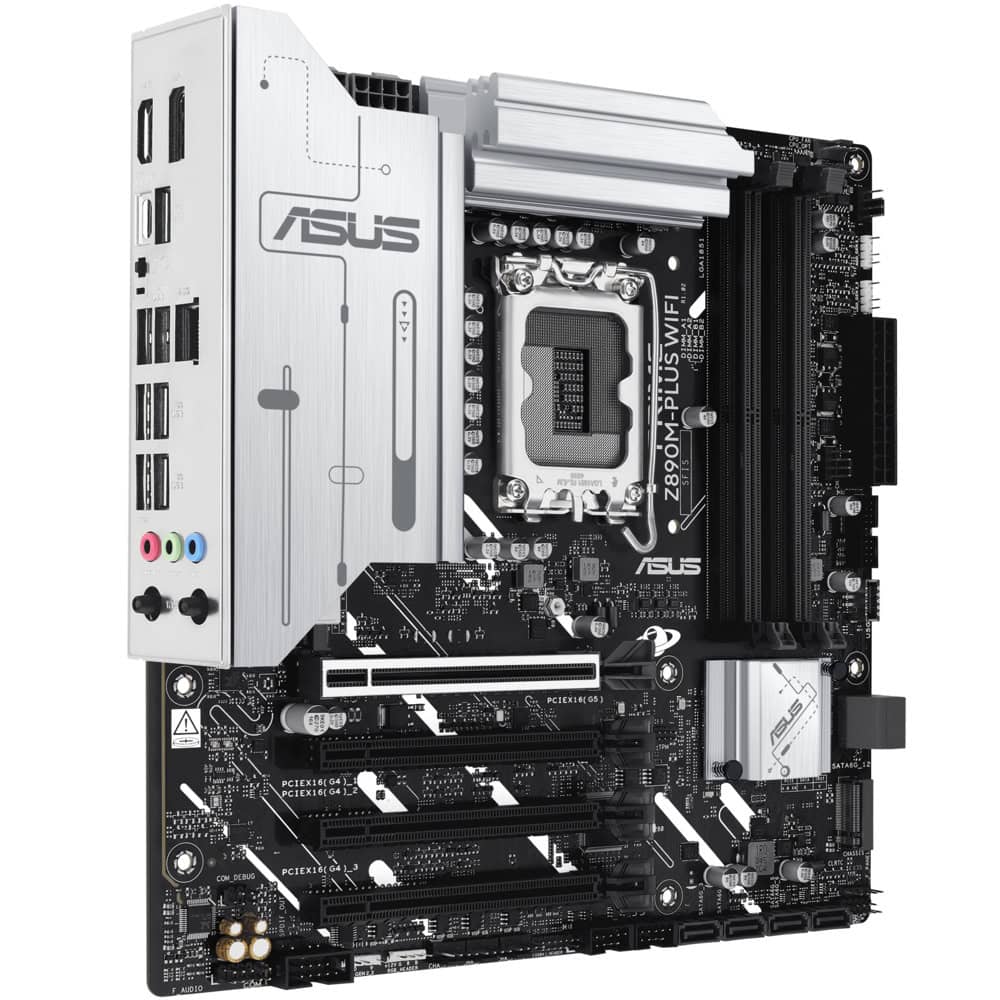

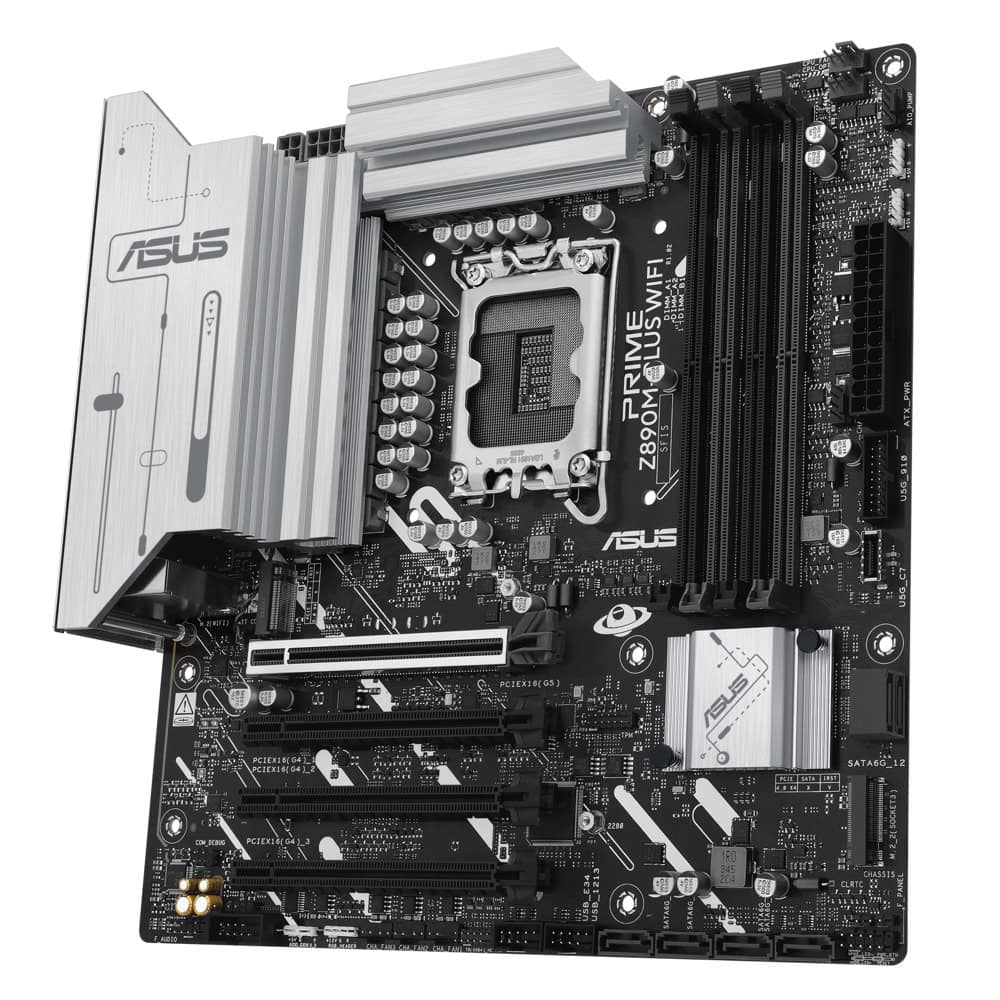

Дънна платка Asus PRIME Z890M-PLUS WIFI

Asus Z890M-PLUS WIFI

90MB1J80-M0EAY0

CPU

Supports Intel Core Ultra Processors(Series 2), LGA1851

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel Z890 Chipset

Memory

4x DIMM slots, max. 192GB, DDR5

Support up to 8666+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*

Dual channel memory architecture

DIMM Fit

Supports Intel Extreme Memory Profile (XMP)

ASUS Enhanced Memory Profile III(AEMPIII)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.

** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1x DisplayPort**

1x HDMI port***

1x USB 20Gbps port (USB Type-C) supports DisplayPort video output****

*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

**Supports max. 4K@60Hz as specified in DisplayPort 1.4.

***Supports 4K@60Hz as specified in HDMI 2.1.

****Supports max. 4K@120Hz as specified in DisplayPort 1.4.

***** VGA resolution support depends on processors' or graphic cards' resolution.

****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

Intel Core Ultra Processors (Series 2)*

1x PCIe 5.0 x16 slot

Intel Z890 Chipset

1x PCIe 4.0 x16 slot (supports x4 mode)

2x PCIe 4.0 x16 slots (support x1 mode)

Storage

Total supports 3x M.2 slots and 6x SATA 6Gb/s ports*

Intel Core Ultra Processors (Series 2)*

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

Intel Z890 Chipset

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

6x SATA 6Gb/s ports

* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Ethernet

1x Realtek 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth version may vary.

USB

Rear USB (Total 8 ports)

1x USB 20Gbps port (1x USB Type-C with DP Alt mode)

1x USB 10Gbps port (1x Type-A)

4x USB 5Gbps ports (4x Type-A)

2x USB 2.0 ports (2x Type-A) **

Front USB (Total 7 ports)

1x USB 5Gbps connector (supports USB Type-C)

1x USB 5Gbps header supports 2 additional USB 5Gbps ports

2x USB 2.0 headers support 4 additional USB 2.0 ports**

* USB Type-C power delivery output: max. 5V/3A

** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

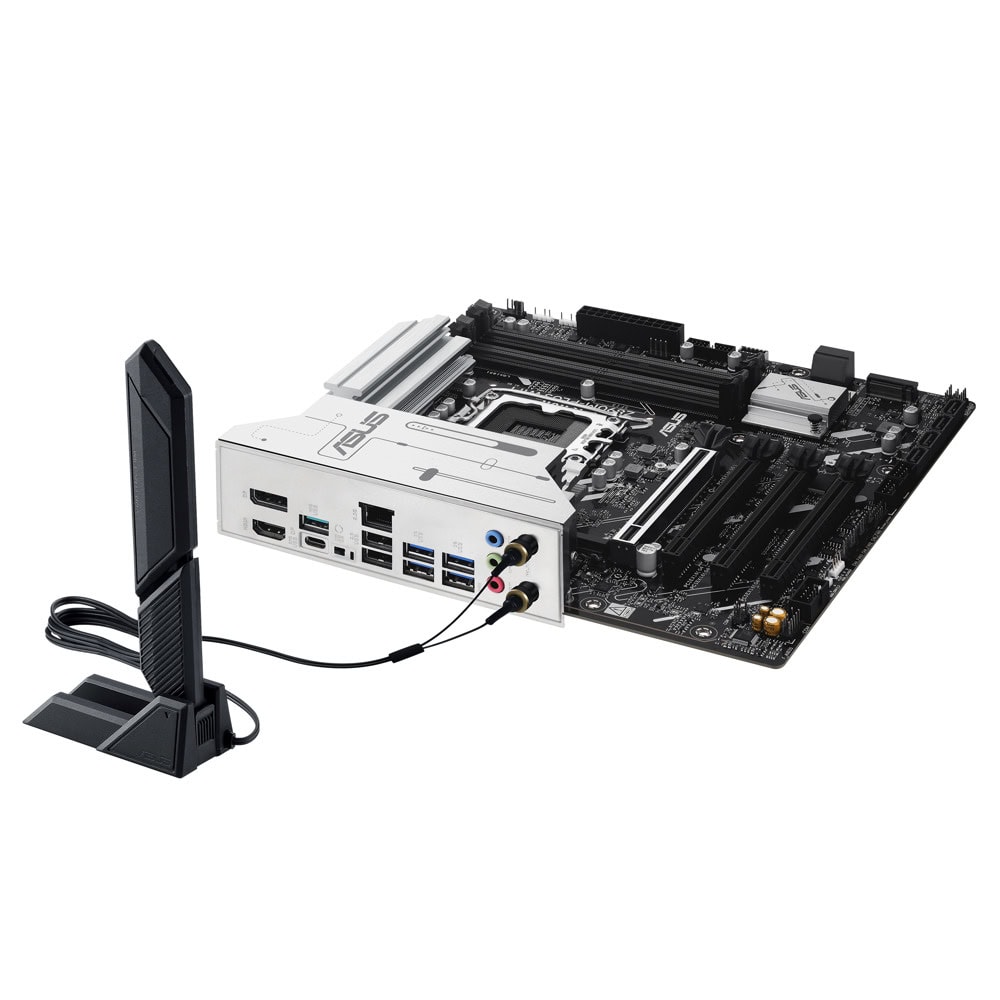

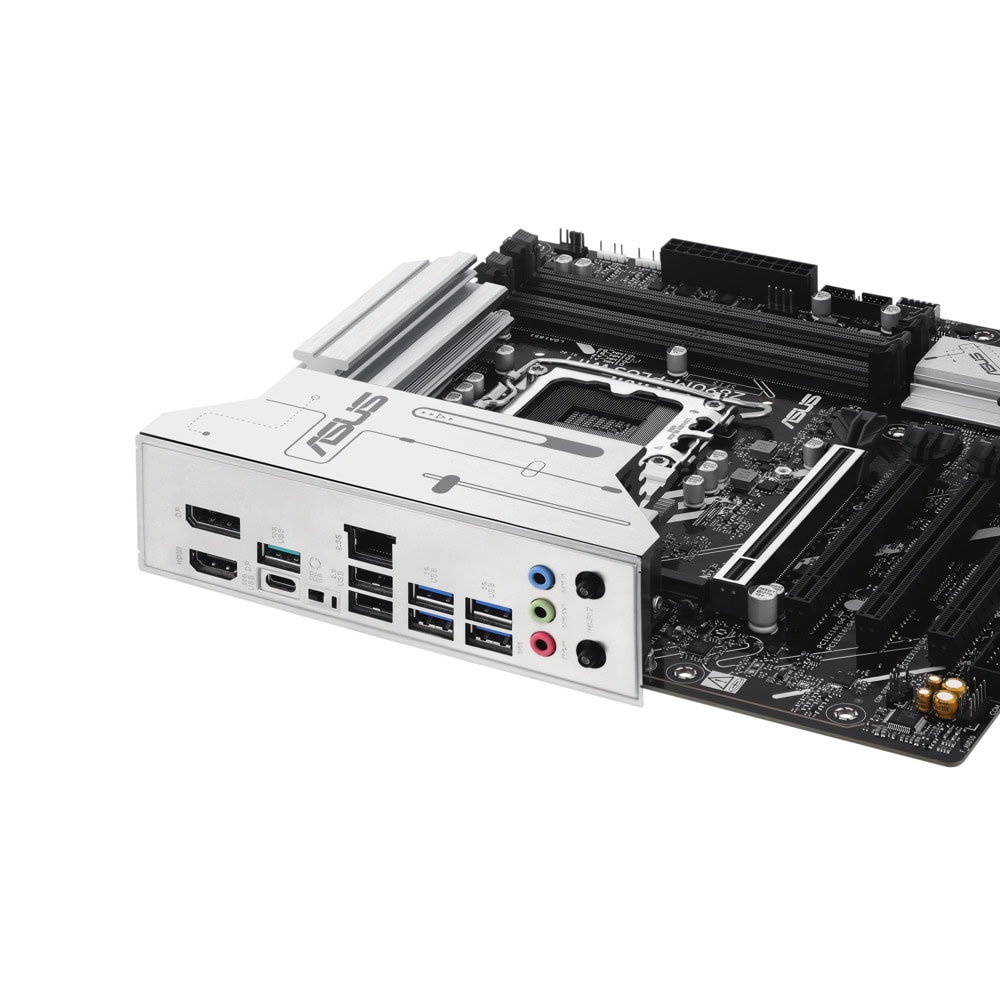

Back Panel I/O Ports

1x USB 20Gbps port (1x USB Type-C with DP Alt mode)

1x USB 10Gbps port (1x Type-A)

4x USB 5Gbps ports (4x Type-A)

2x USB 2.0 ports (2x Type-A)

1x DisplayPort

1x HDMI port

1x Wi-Fi module

1x Realtek 2.5Gb Ethernet

3x Audio jacks

1x BIOS FlashBack button

Internal I/O Connectors

Fan and cooling related

1x 4-pin CPU Fan header

1x 4-pin CPU OPT Fan header

1x 4-pin AIO Pump header

4x 4-pin Chassis Fan headers

Power related

1x 24-pin Main Power connector

1x 8-pin +12V CPU Power connector

1x 4-pin +12V CPU Power connector

Storage related

3x M.2 slots (Key M)

6x SATA 6Gb/s ports

USB

1x USB 5Gbps connector (supports USB Type-C)

1x USB 5Gbps header supports 2 additional USB 5Gbps ports

2x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3x Addressable Gen2 headers

1x Aura RGB header

1x Clear CMOS header

1x Chassis Intrusion header

1x COM Port header

1x Front Panel Audio header (F_AUDIO)

1x S/PDIF Out header

1x SPI TPM header (14-1pin)

1х 10-1 pin Front Panel System header

1x Thunderbolt (USB4) header

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design with DrMOS)

- LANGuard
