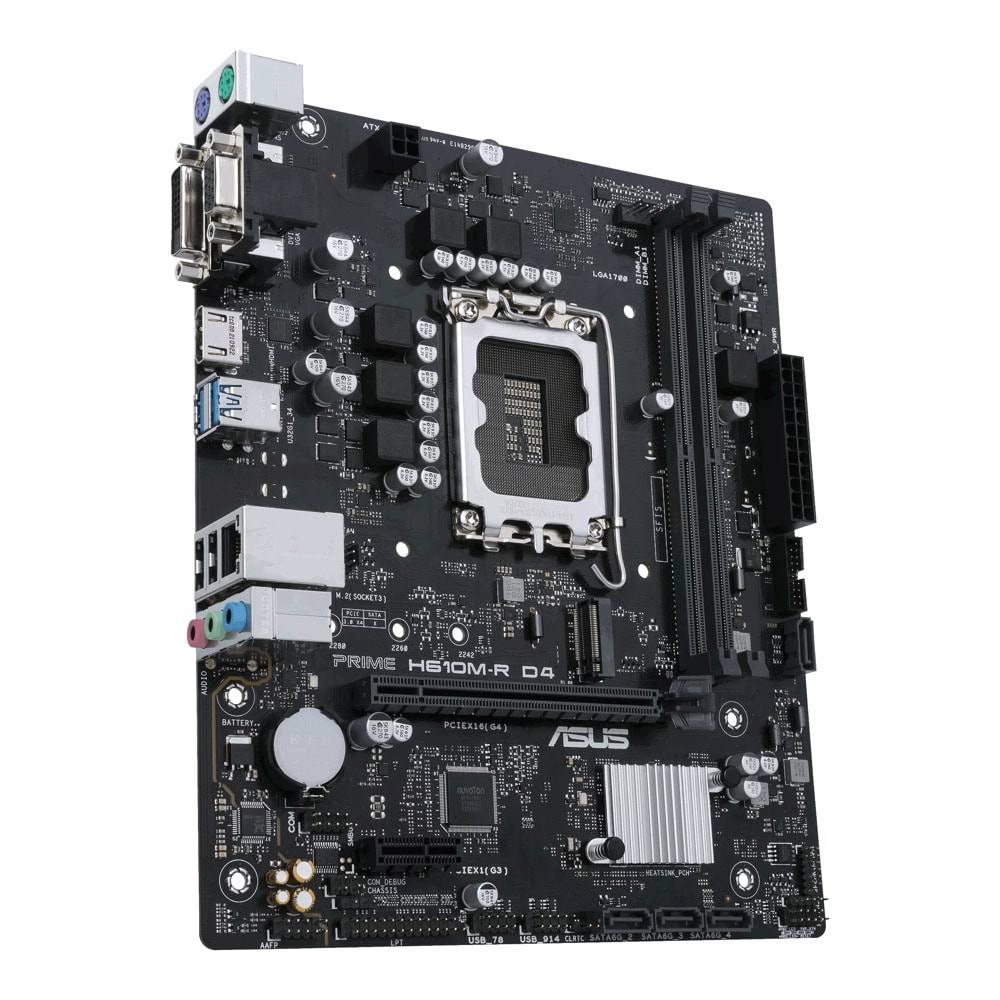

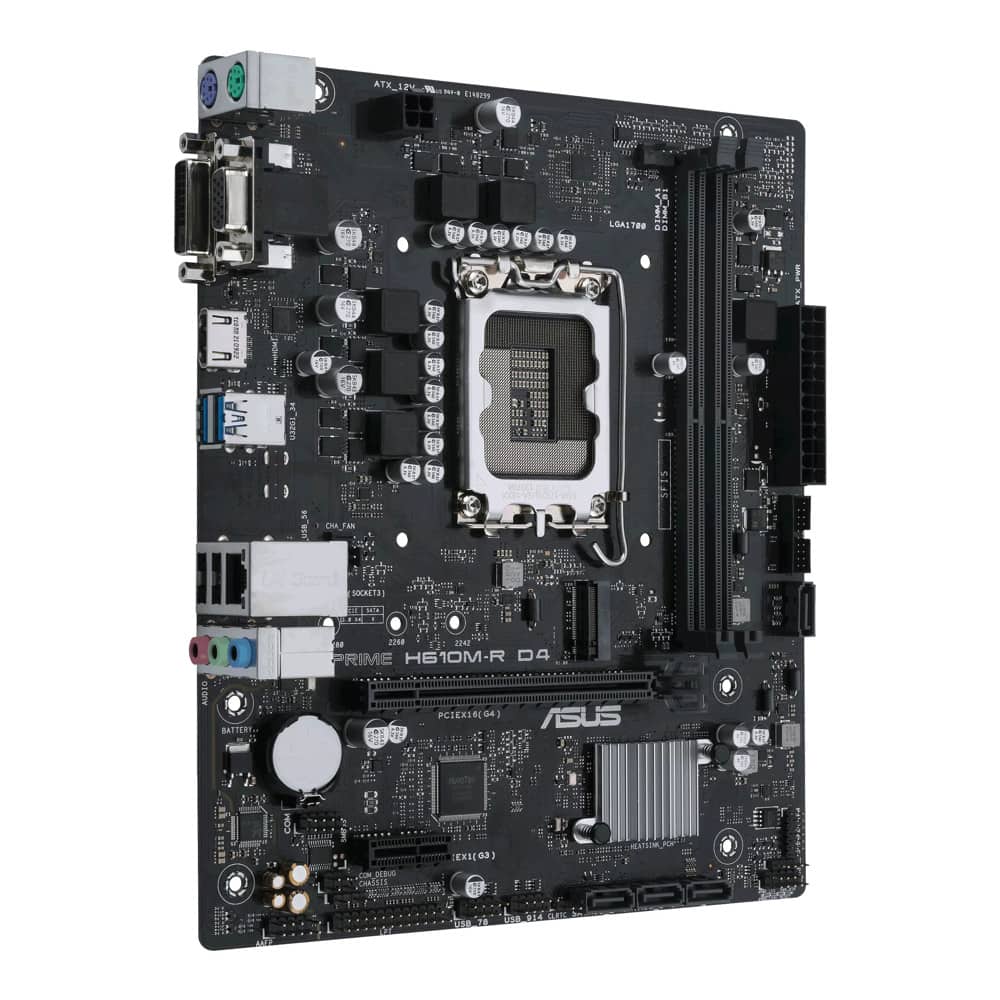

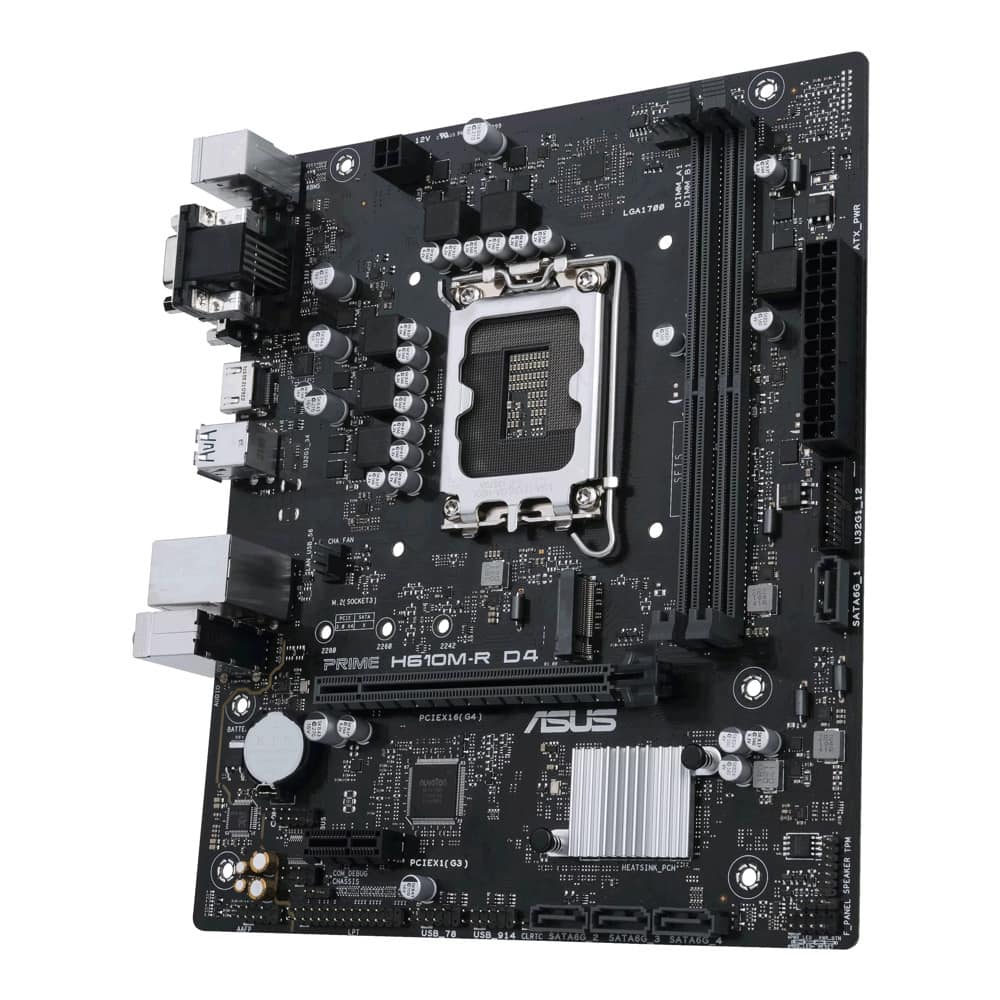

Дънна платка Asus Prime H610M-R D4 (90MB1B40-M0ECY0)
Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®,D-Sub, DVI, USB 3.2 Gen 1 ports, SATA 6 Gbps , COM header, LPT header, TPM header
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
* Specifications vary by models.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Storage
M.2 slot (up to 32 Gbps)
Prime H610M-R D4 offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
Характеристики
| Supports up to Intel® | 65W CPU |
| X D-Sub | 1 |
| X DVI-D | 1 |
| X HDMI® port** | 1 |
| Supports | 4K@60Hz as specified in HDMI 2.1 |
| Intel® | 12th Gen Processors |
| 1 x PCIe 4.0 | x16 slot |
| 1 x PCIe 3.0 | x1 slot |
| Total supports | 1 x M.2 slot and 4 x SATA 6Gb/s ports |
| M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 | x4 mode) |
| X SATA 6Gb/s ports | 4 |
| X Realtek 1Gb Ethernet | 1 |
| Rear USB (Total | 4 ports) |
| X USB 3.2 Gen 1 ports (2 x Type-A) | 2 |
| X USB 2.0 ports (2 x Type-A) | 2 |
| Front USB (Total | 6 ports) |
| X USB 2.0 headers support additional 4 USB 2.0 ports | 2 |
| Realtek | 7.1 Surround Sound High Definition Audio CODEC* |
| Supports | Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Supports up to | 24-Bit/192 kHz playback |

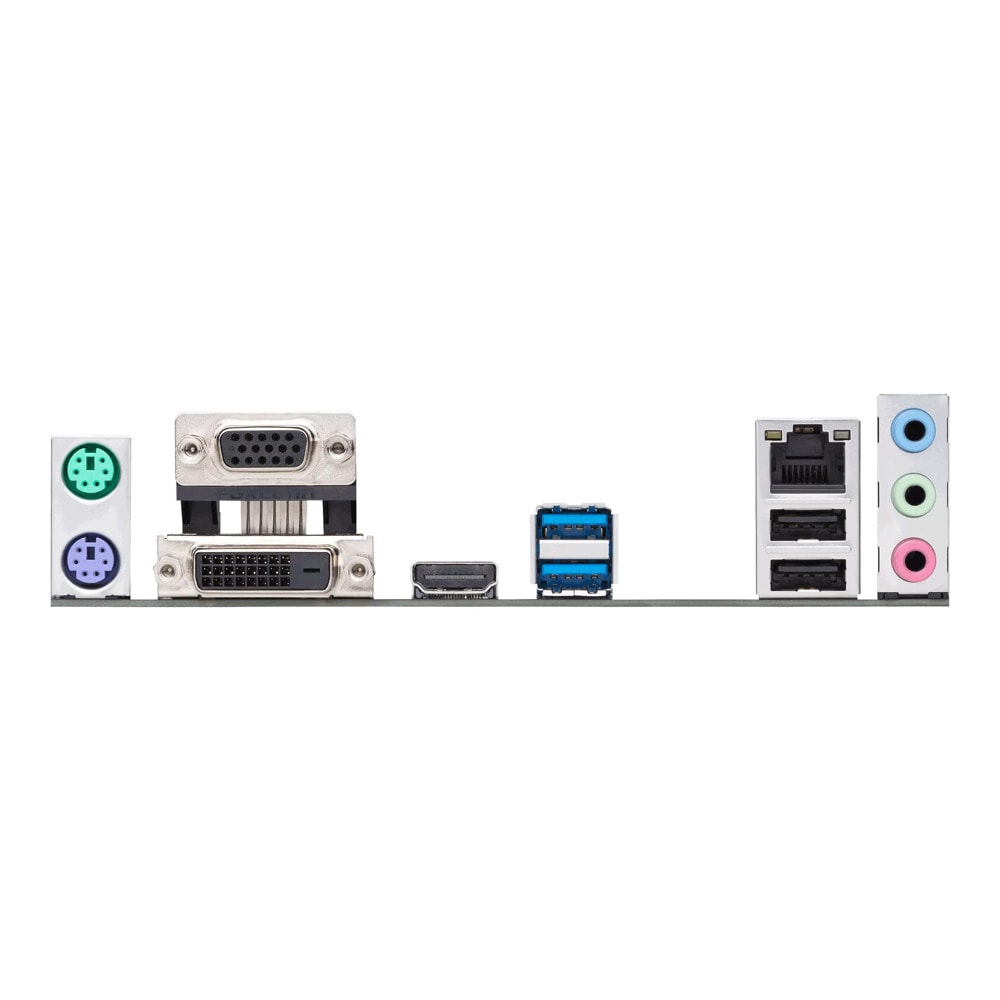

| X USB 3.2 Gen 1 ports (2 x Type-A) | 2 |
| X USB 2.0 ports (2 x Type-A) | 2 |
| X D-Sub port | 1 |
| X DVI-D port | 1 |
| X HDMI® port | 1 |
| X Realtek 1Gb Ethernet port | 1 |
| X Audio jacks | 3 |
| X PS/2 Keyboard (purple) port | 1 |
| X PS/2 Mouse (green) port | 1 |
| X 4-pin CPU Fan header | 1 |
| X 4-pin Chassis Fan header | 1 |
| X 24-pin Main Power connector | 1 |
| X 4-pin +12V Power connector | 1 |
| X M.2 slot (Key M) | 1 |
| X SATA 6Gb/s ports | 4 |
| X USB 2.0 headers support additional 4 USB 2.0 ports | 2 |
| X Clear CMOS header | 1 |
| X Chassis Intrusion header | 1 |
| X COM Port header | 1 |
| X Front Panel Audio header (AAFP) | 1 |
| X LPT header | 1 |
| X Speaker header | 1 |
| X SPI TPM header (14-1 pin) | 1 |
| X 10-1 pin System Panel header | 1 |
| ASUS | 5X PROTECTION III |
| AI Suite | 3 |
| ASUS CrashFree BIOS | 3 |
| ASUS EZ Flash | 3 |
| Mb Flash ROM, UEFI AMI BIOS | 128 |

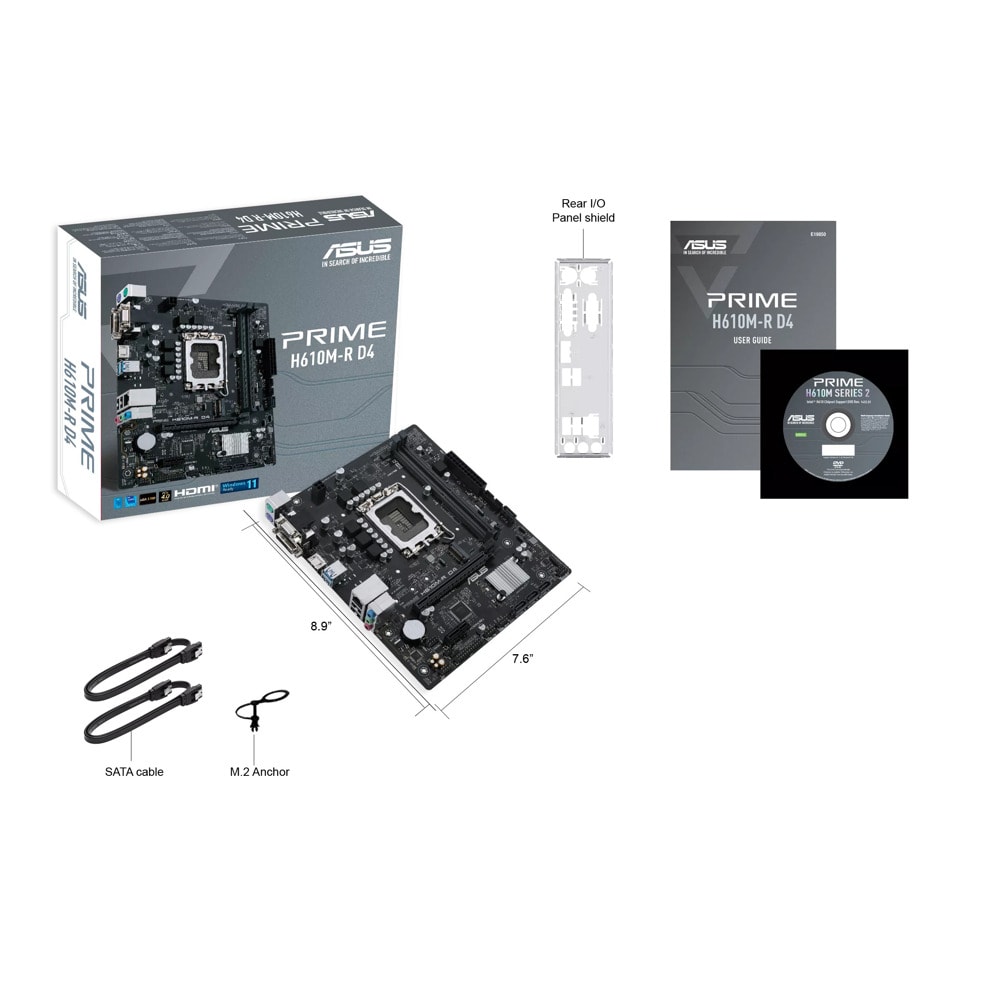

| X SATA 6Gb/s cables | 2 |
| X I/O Shield | 1 |
| X M.2 ANCHOR | 1 |
| X Support DVD | 1 |
| X User guide | 1 |
| Windows® | 11 64-bit, Windows® 10 64-bit |
| Inch x 7.6 inch (22.6 cm x 19.3 cm ) | 8.9 |
