Дънна платка Asus Prime H610M-A WIFI D4

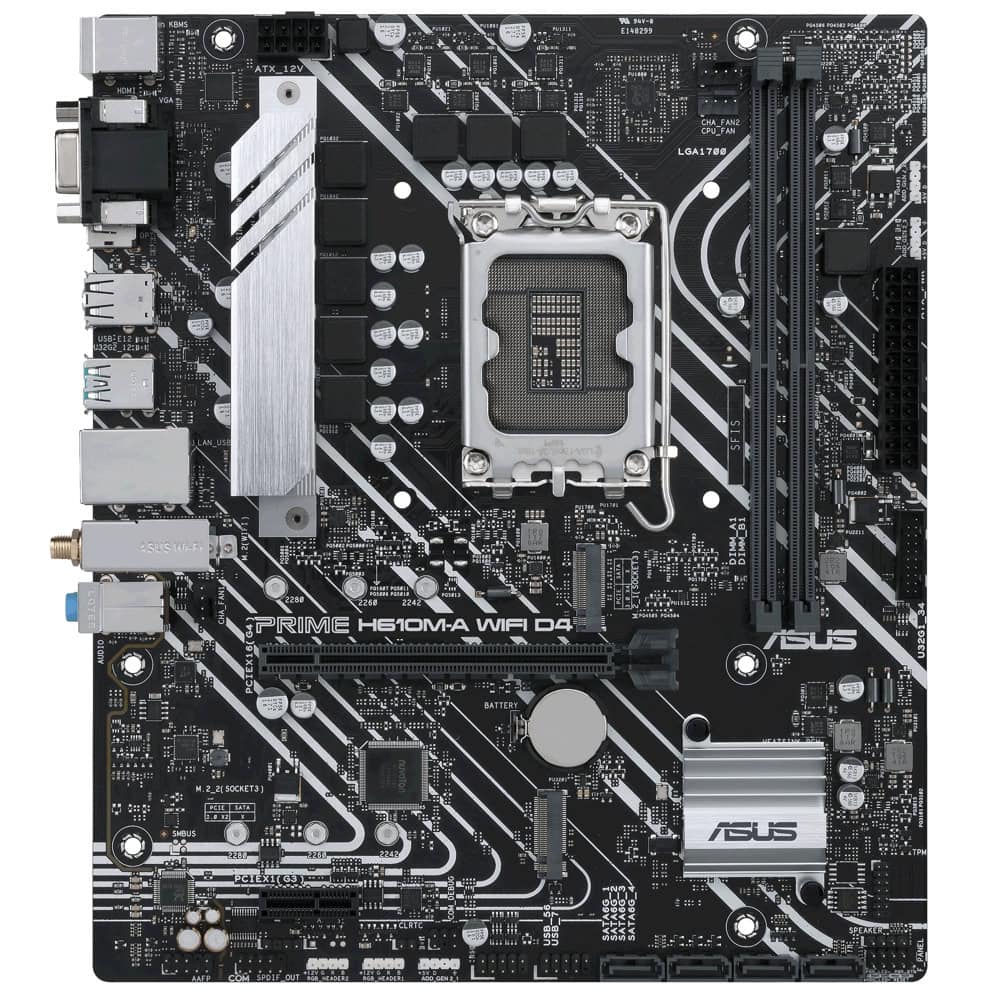

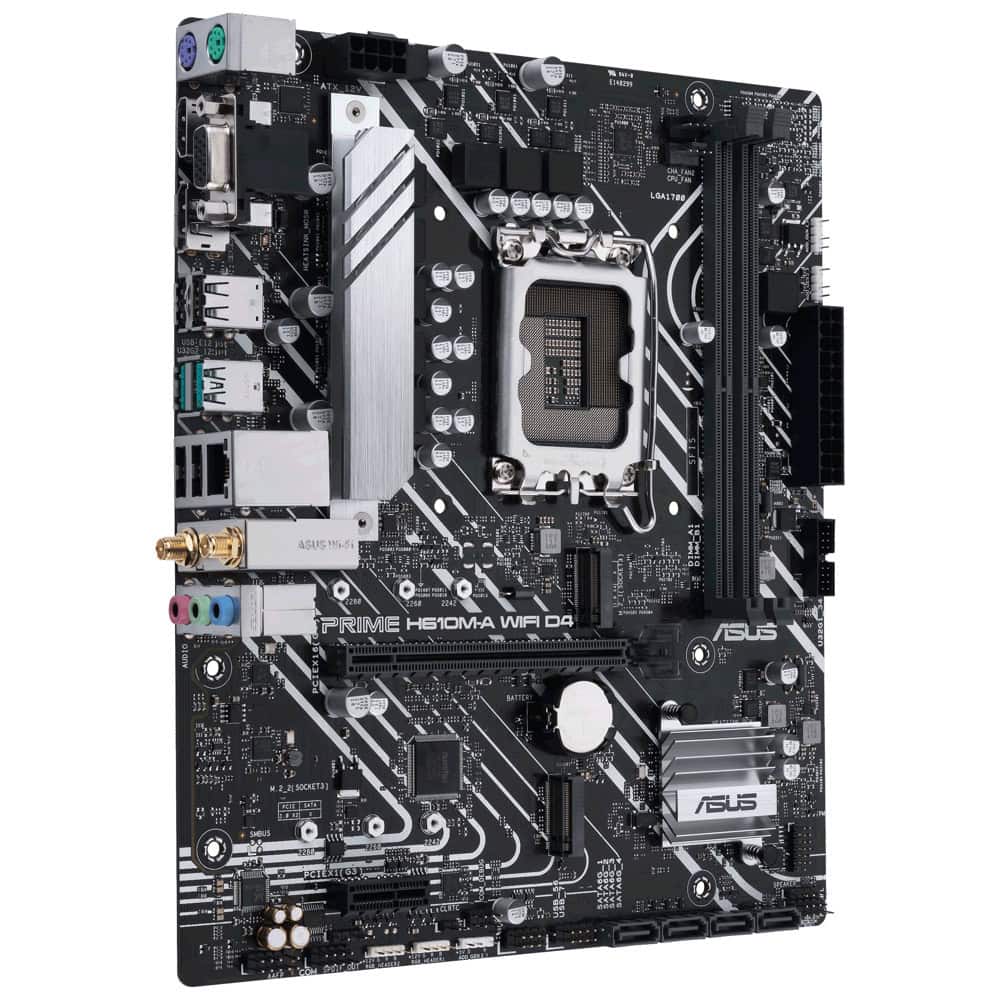

Asus PRIME H610M-A WIFI D4

Specs:

CPU

Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel H610 Chipset

Memorу

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

*Actual memory data rate depends on the CPU types and DRAM modules.

Graphics

1 x DisplayPort**

1 x D-Sub port

1 x HDMI port***

* Graphics specifications may vary between CPU types.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

Eхpansion Slots

Intel Core Processors (14th & 13th & 12th Gen)

1 x PCIe 4.0 x16 slot

Intel H610 Chipset

1 x PCIe 3.0 x1 slot

Storage

Total supports 2x M.2 slots and 4 x SATA 6Gb/s ports

Intel H610 Chipset

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)

4 x SATA 6Gb/s ports

Ethernet

1 x Intel 1Gb Ethernet

Wireless & Bluetooth

Wi-Fi 5

Wi-Fi 5 (802.11 a/b/g/n/ac)

Supports 2.4/5GHz frequency band

Bluetooth v5.0

USB

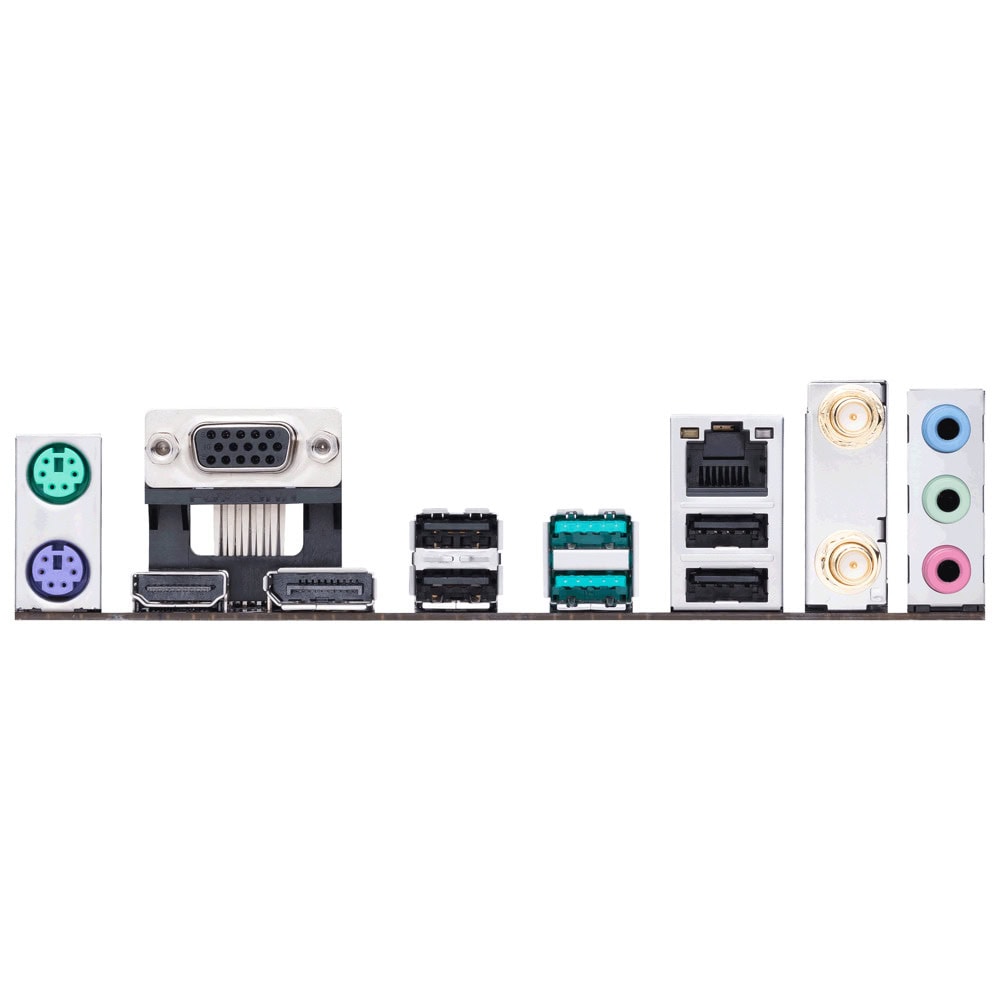

Rear USB (Total 6 ports)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 5 ports)

1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2x USB 2.0 headers support additional 3 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features
