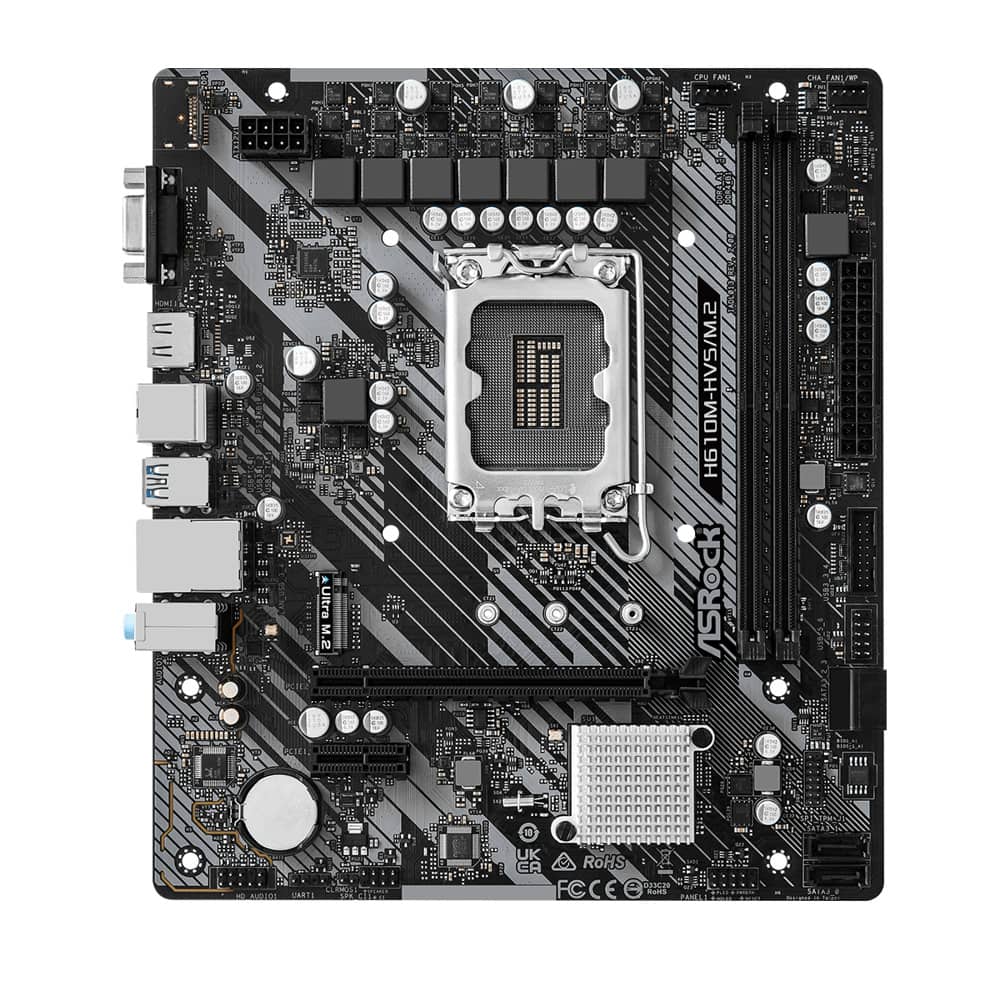

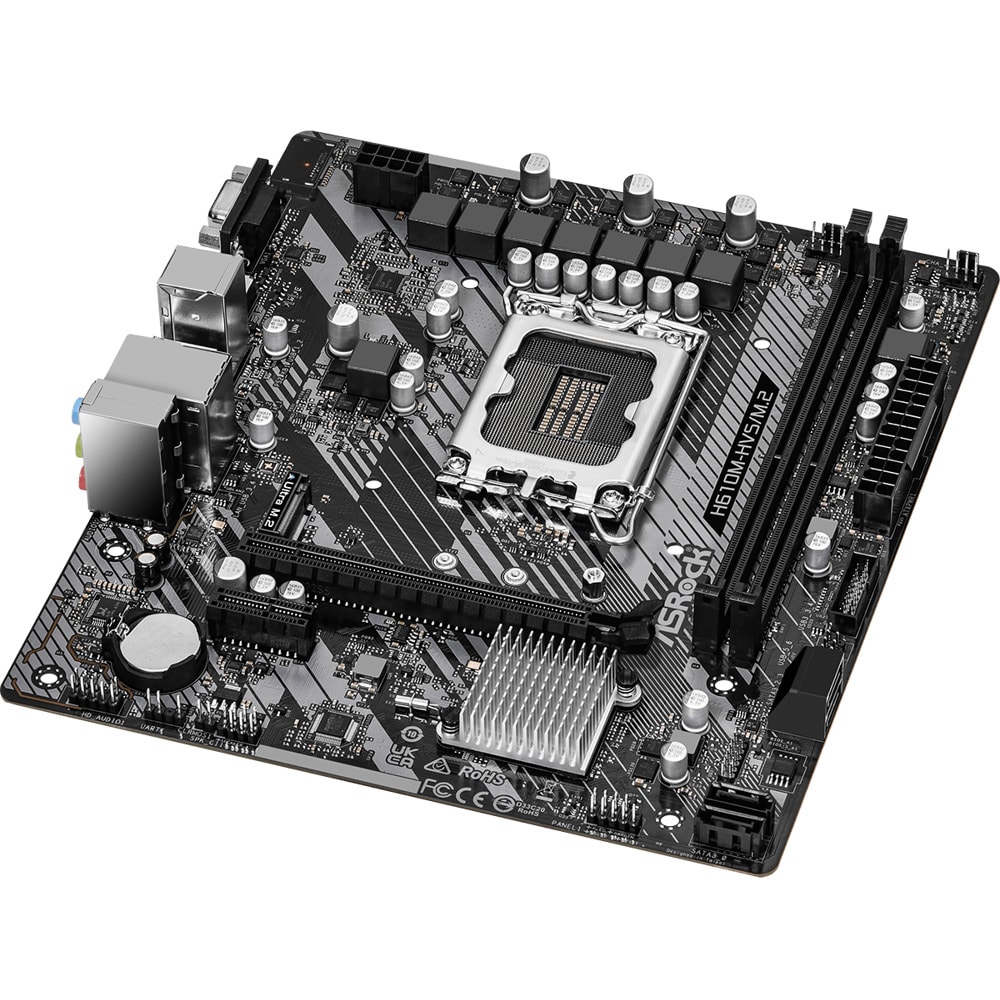

Дънна платка ASRock H610M-HVS
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Характеристики
| Power Phase design | 7 |
| Supports Intel® Hybrid Technology | Да |
| Supports Intel® Turbo Boost Max | 3.0 Technology |
| Чипсет | Да |
| Intel® H610 | Да |
| Памет | Да |
| Dual Channel DDR4 Memory Technology | Да |
| X DDR4 DIMM Slots | 2 |
| Supports DDR4 non-ECC, un-buffered memory up to | 3200 |
| Supports ECC UDIMM memory modules (operate in non-ECC mode) | Да |
| Max. capacity of system memory | 64GB |
| Supports Intel® Extreme Memory Profile (XMP) | 2.0 |
| BIOS | Да |
| 128Mb AMI UEFI Legal BIOS with multilingual GUI support | Да |
| ACPI | 6.0 Compliant wake up events |
| SMBIOS | 2.7 Support |
| Графика | Да |
| Intel® Xe Graphics Architecture (Gen | 12) |
| Dual graphics output | support HDMI and D-Sub ports by independent display controllers |
| Supports D-Sub with max. resolution up to | 1920x1200 @ 60Hz |
| Supports HDCP | 2.3 with HDMI 2.1 TMDS Compatible Port |
| Аудио | Да |
| CH HD Audio (Realtek ALC897/887 Audio Codec) | 7.1 |
| Supports Surge Protection | Да |
| Мрежова карта | Да |
| PCIE | x1 Gigabit LAN 10/100/1000 Mb/s |
| X Realtek RTL8111H | 1 |
| Supports Wake-On-LAN | Да |
| Supports Lightning/ESD Protection | Да |
| Supports Energy Efficient Ethernet | 802.3az |
| Supports PXE | Да |
| Slots | Да |
| Процесор | 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode* |
| Чипсет | 1 x PCIe 3.0 x1 Slot (PCIE1) *Supports NVMe SSD as boot disks Storage |

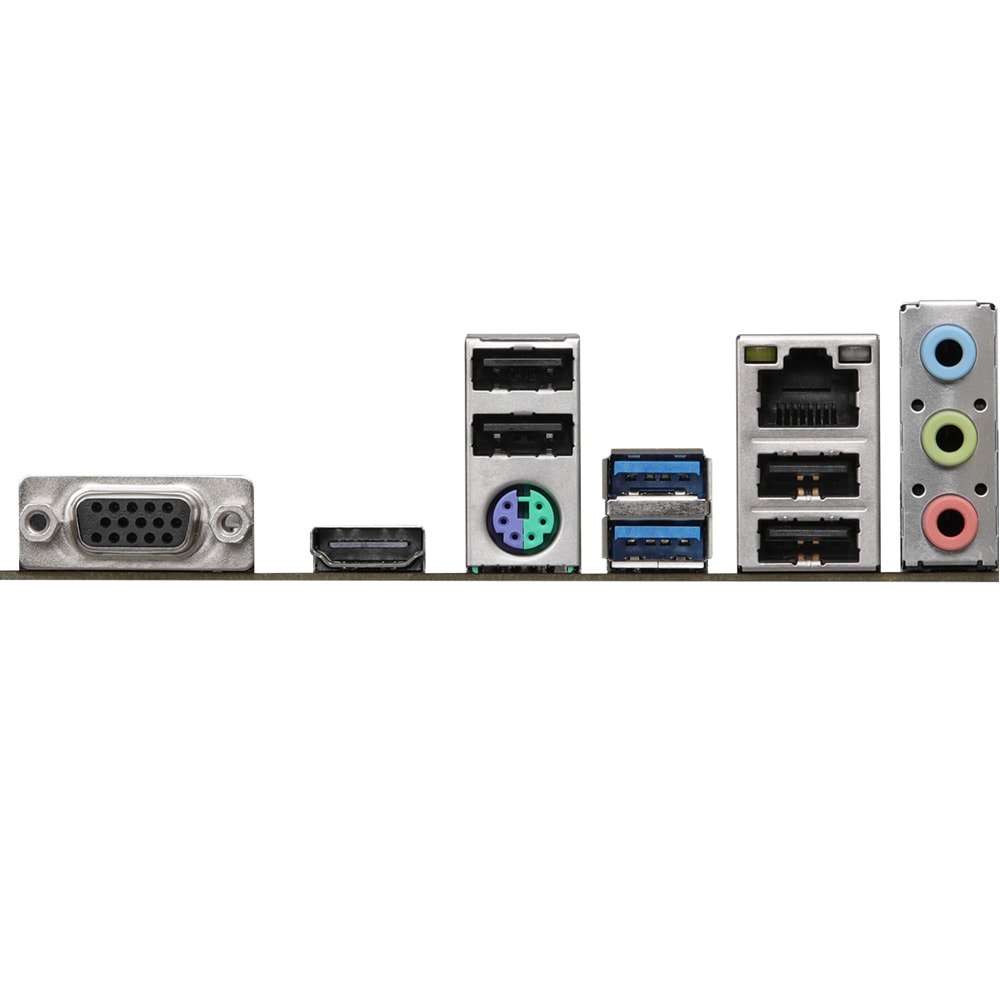

| Чипсет | 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* 4 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 4 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone Software ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN Form Factor Micro ATX Form Factor: 22.0 cm x 19.3 cm Solid Capacitor design |
