ASRock
Дънна платка ASRock B760M Pro RS
Артикул №: 1000127513
Категория:
Компютърни компоненти
135,99 €
✓ Налично в централен склад

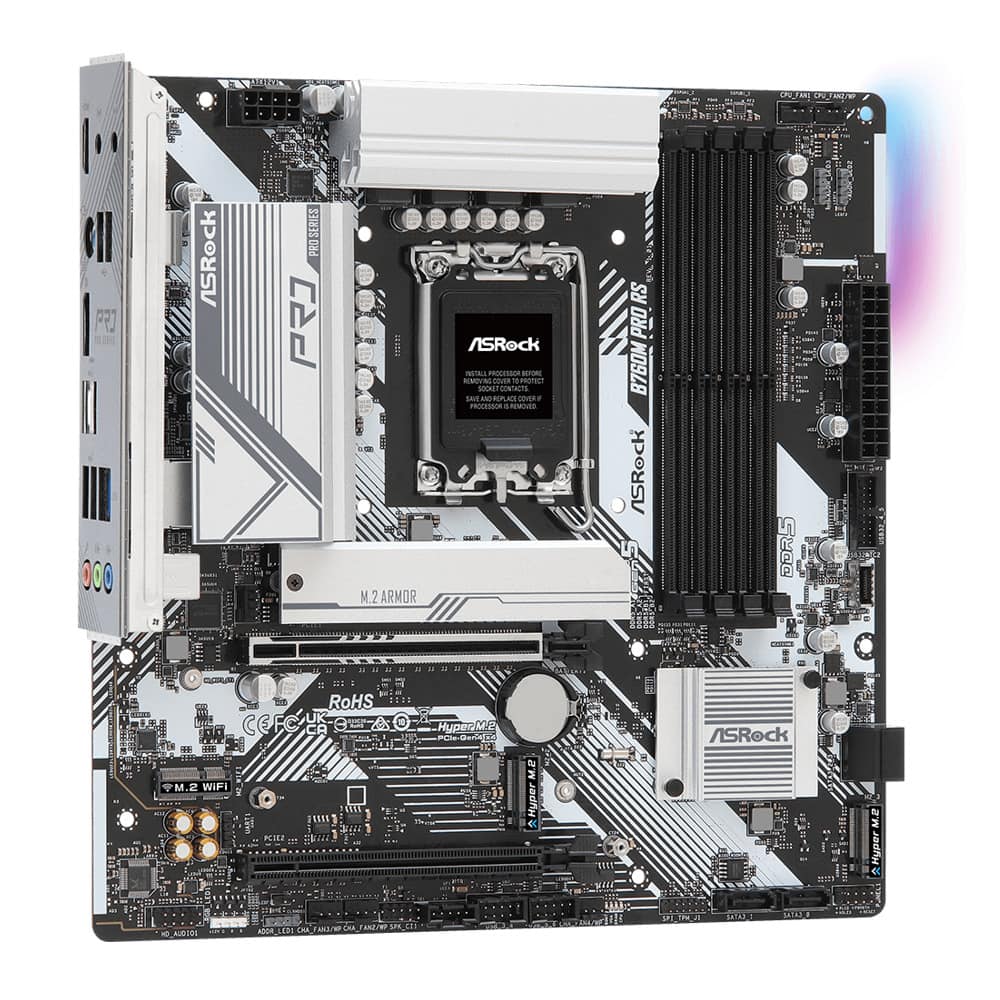

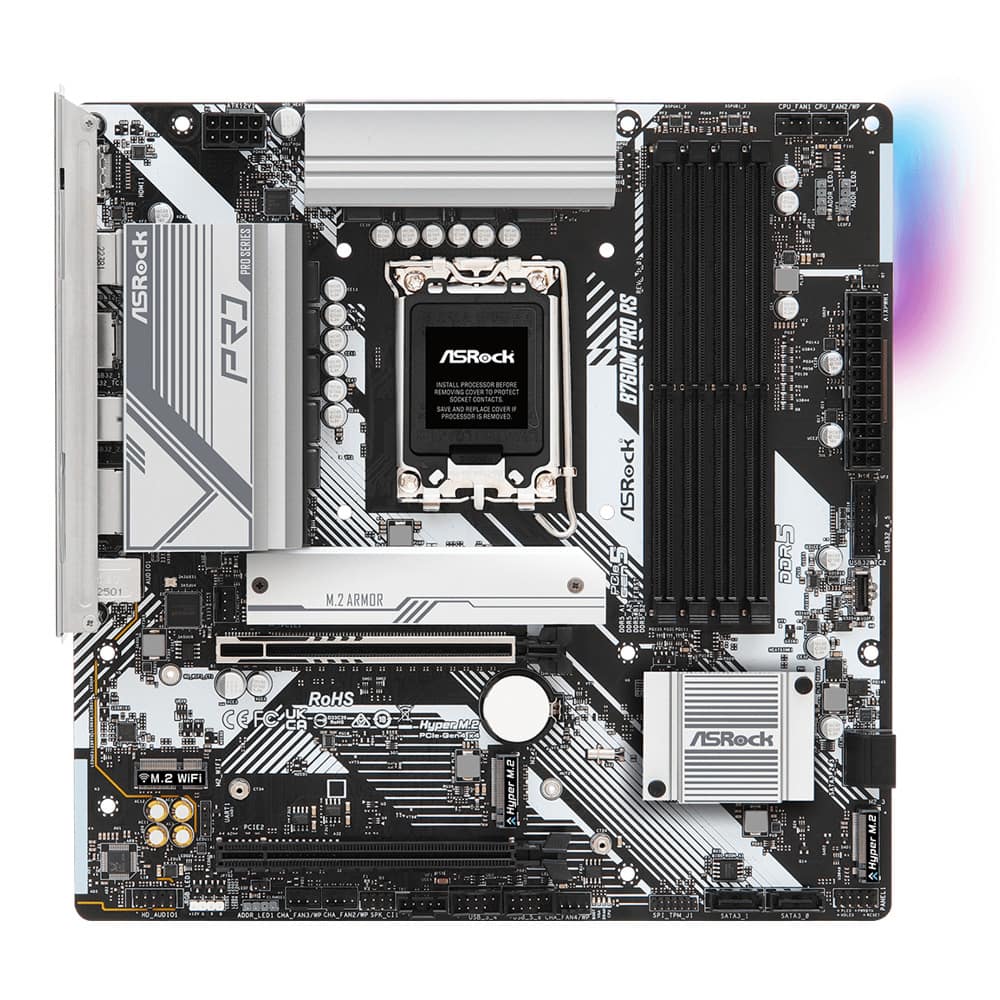

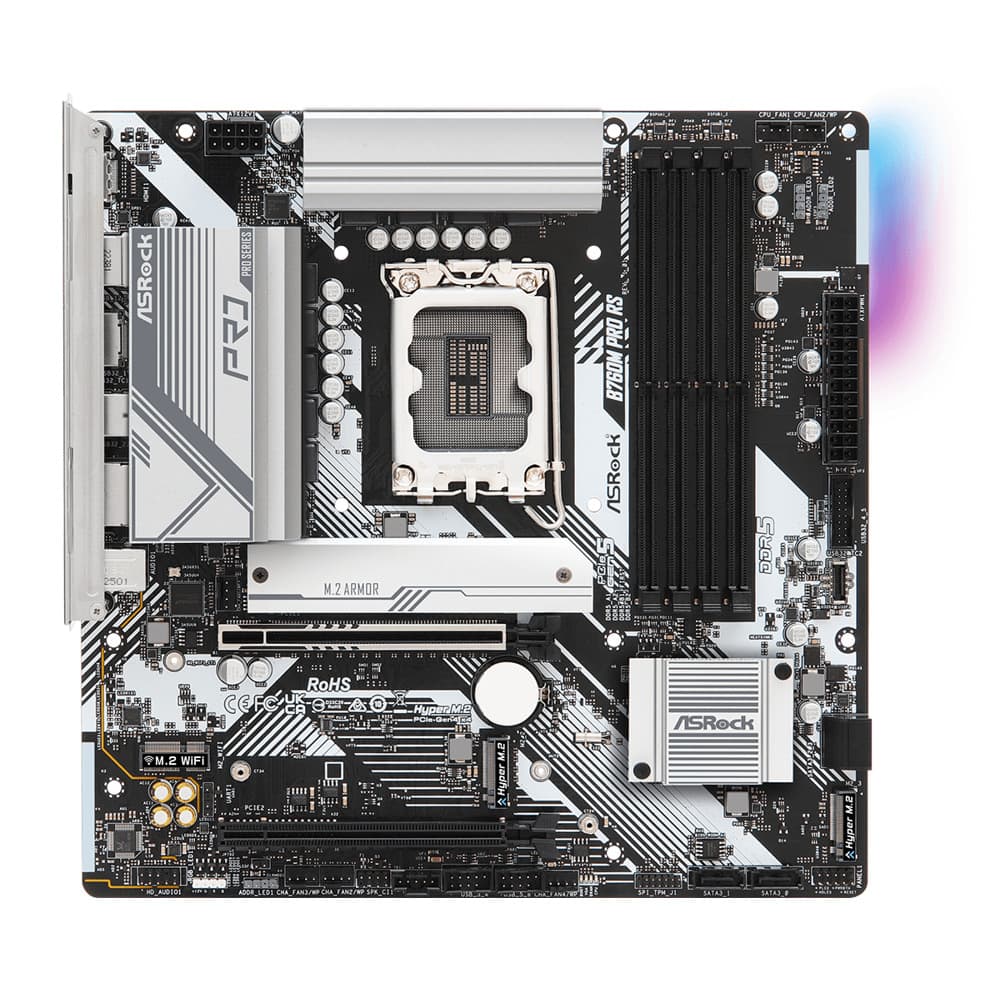

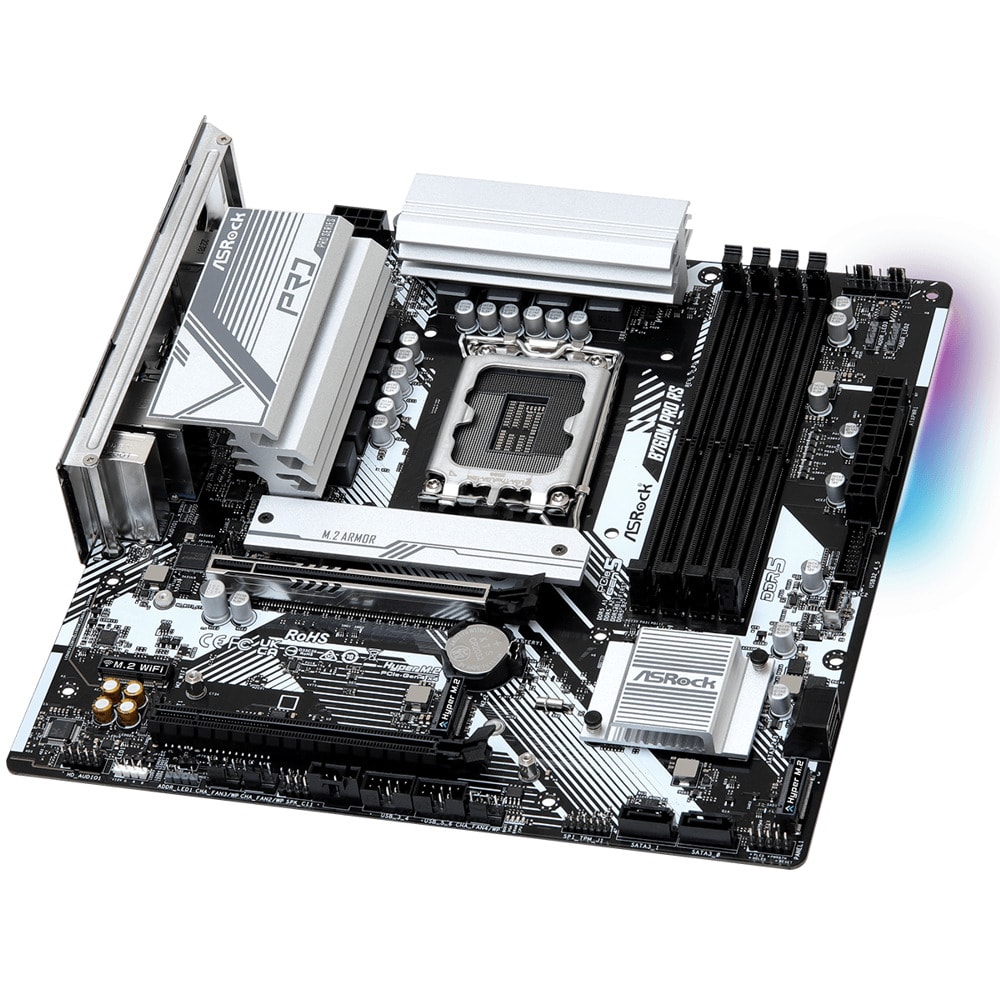

ASRock B760M Pro RS
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Характеристики
| Supports Intel® Hybrid Technology | Да |
| Supports Intel® Turbo Boost Max | 3.0 Technology |
| Supports Intel® Thermal Velocity Boost (TVB) | Да |
| Supports Intel® Adaptive Boost Technology (ABT) | Да |
| Чипсет | Да |
| Intel® B760 | Да |
| Памет | Да |
| Dual Channel DDR5 Memory Technology | Да |
| X DDR5 DIMM Slots | 4 |
| Supports DDR5 non-ECC, un-buffered memory up to | 7200+(OC) |
| Max. capacity of system memory | 192GB |
| Supports Intel® Extreme Memory Profile (XMP) | 3.0 |
| BIOS | Да |
| 128Mb AMI UEFI Legal BIOS with GUI support | Да |
| Графика | Да |
| Intel® Xe Graphics Architecture (Gen | 12) |
| Аудио | Да |
| CH HD Audio (Realtek ALC897 Audio Codec) | 7.1 |
| Nahimic Audio | Да |
| Мрежова карта | Да |
| Gigabit LAN 10/100/1000/2500 Mb/s | 2.5 |
| Dragon RTL8125BG | Да |
| Supports Dragon | 2.5G LAN Software |
| Smart Auto Adjust Bandwidth Control | Да |
| Visual User Friendly UI | Да |
| Visual Network Usage Statistics | Да |
| User Customized Priority Control | Да |
| Slots | Да |
| Процесор | 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
| Чипсет | 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) Supports AMD CrossFire™ Storage CPU 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Чипсет | 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 4 x SATA3 6.0 Gb/s Connectors Supports NVMe SSD as boot disks RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices USB 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front) Connector 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x RGB LED Header 3 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header Rear Panel I/O 2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 3 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone Form Factor Micro ATX Form Factor: 24.4 cm x 24.4 cm OS Microsoft® Windows® 10 64-bit / 11 64-bit |
