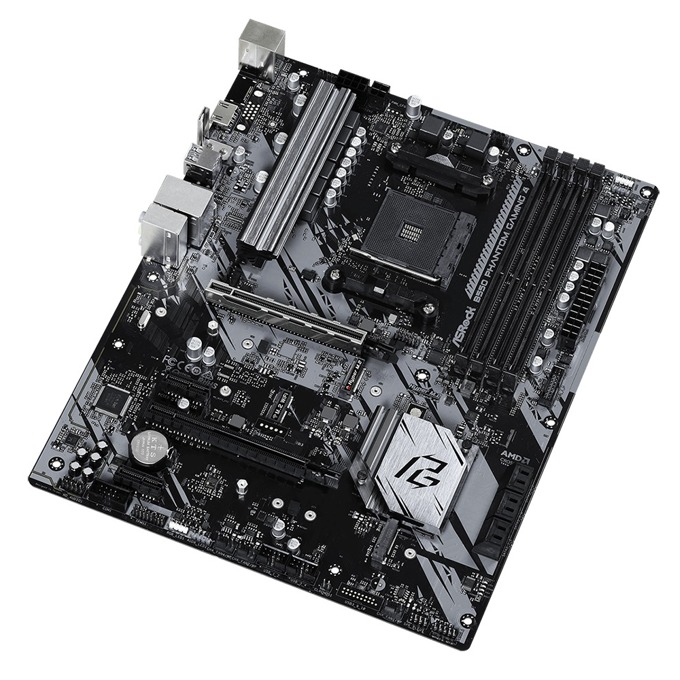

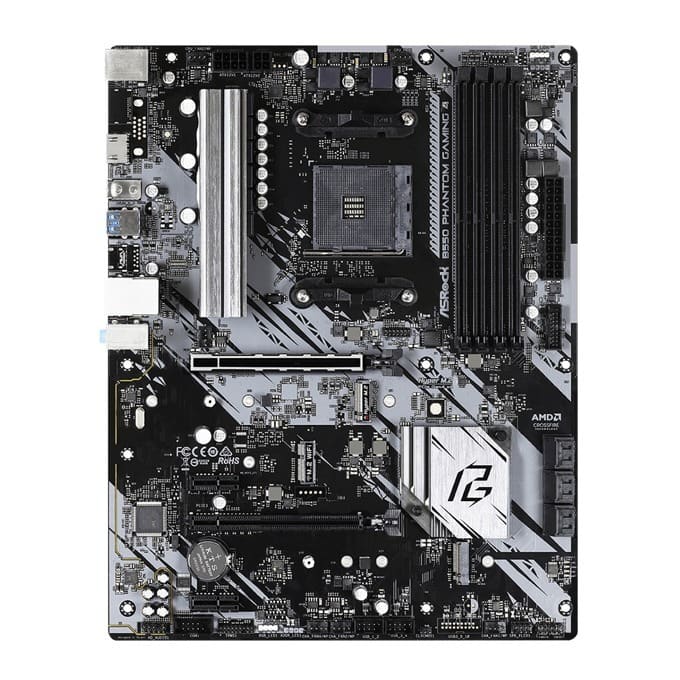

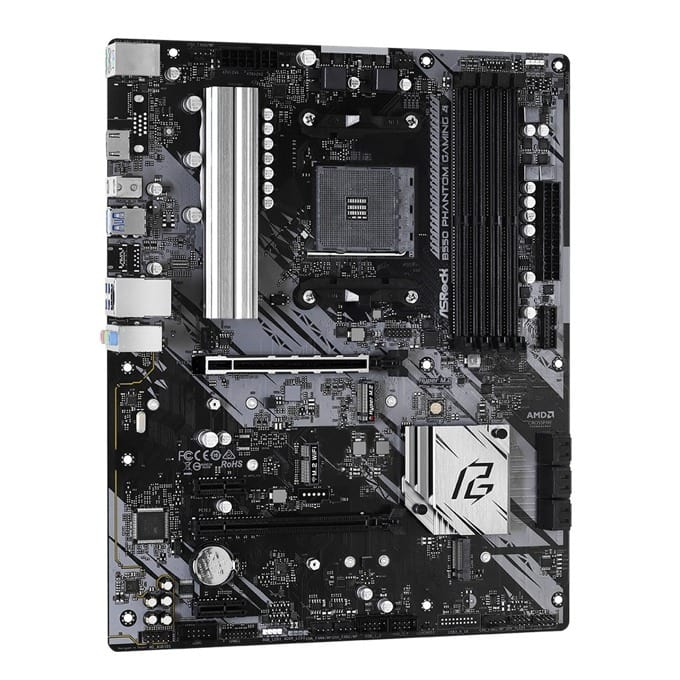

Дънна платка ASRock B550 PHANTOM GAMING 4

Артикул №: 1000018872

Категория: Дънни платки за AMD процесори

92,99 €

✓ Налично във външен склад

B550 Phantom Gaming 4

Premium	50A Power Choke
Power Phase design	8
Not compatible with AMD Ryzen™	5 3400G and Ryzen™ 3 3200G
X DDR4 DIMM Slots	4
Max. capacity of system memory	128GB**
ACPI	5.1 compliance wake up events
SMBIOS	2.3 support
DirectX	12, Pixel Shader 5.0
Supports HDR (High Dynamic Range) with HDMI	2.1
Supports HDCP	2.3 with HDMI 2.1 Port
Supports	4K Ultra HD (UHD) playback with HDMI 2.1 Port
PCIE	x1 Gigabit LAN 10/100/1000 Mb/s
Supports Energy Efficient Ethernet	802.3az
2 x PCI Express x16 Slots (PCIE1	Gen4x16 mode; PCIE3: Gen3 x4 mode)*
2 x PCI Express x16 Slots (PCIE1	Gen3x16 mode; PCIE3: Gen3 x4 mode)*
2 x PCI Express 3.0	x1 Slots
X COM Port Header	1
X SPI TPM Header	1
X Power LED and Speaker Header	1
X RGB LED Headers*	2
X Addressable LED Headers**	2
X CPU Fan Connector (4-pin)***	1
1	x 24 pin ATX Power Connector
1	x 8 pin 12V Power Connector
1	x 4 pin 12V Power Connector
X Front Panel Audio Connector	1
X Antenna Ports	2

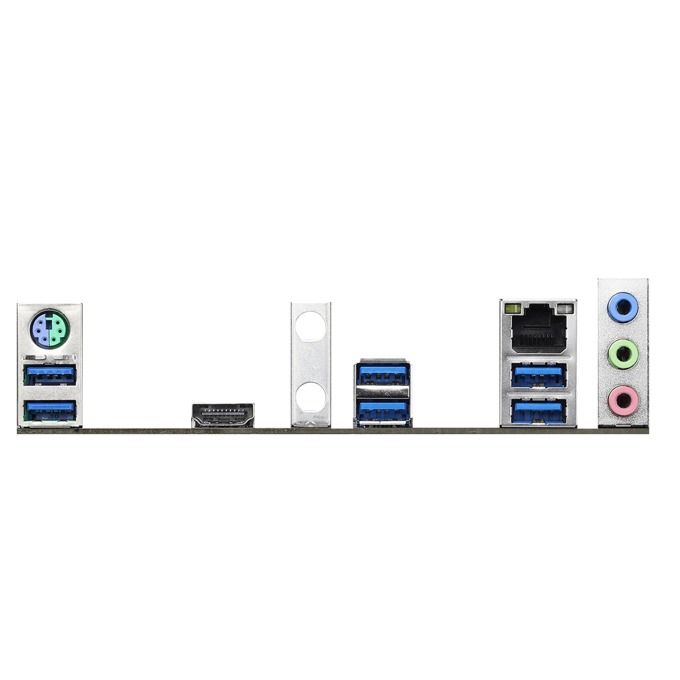

X PS/2 Mouse/Keyboard Port	1
X HDMI Port	1
X USB 3.2 Gen1 Ports (Supports ESD Protection)	6
X RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)	1
HD Audio Jacks	Line in / Front Speaker / Microphone
X SATA Data Cables	2
X Screw for M.2 Socket	3
Temperature Sensing	CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Tachometer	CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Multi-Speed Control	CPU, CPU/Water Pump, Chassis/Water Pump Fans
Voltage monitoring	+12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP
ATX Form Factor	12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Microsoft® Windows®	10 64-bit
