ASRock
Дънна платка ASRock A520M-HVS
Артикул №: 1000017497
Категория:
Дънни платки за AMD процесори
54,99 €
✓ Налично във външен склад
-
Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*
-
6 Phase Power Design
Характеристики
| Premium | 50A Power Choke |
| ASRock Ultra M.2 (PCIe Gen3 | x4 & SATA3) |
| Power Phase design | 6 |
| X DDR4 DIMM Slots | 2 |
| Max. capacity of system memory | 64GB** |
| ACPI | 5.1 compliance wake up events |
| SMBIOS | 2.3 support |
| DirectX | 12, Pixel Shader 5.0 |
| Dual graphics output | support D-Sub and HDMI ports by independent display controllers |
| Supports D-Sub with max. resolution up to | 1920x1200 @ 60Hz |
| Supports HDR (High Dynamic Range) with HDMI | 2.1 |
| Supports HDCP | 2.3 with HDMI 2.1 Port |
| Supports | 4K Ultra HD (UHD) playback with HDMI 2.1 Port |
| CH HD Audio (Realtek ALC887 Audio Codec) | 7.1 |
| PCIE | x1 Gigabit LAN 10/100/1000 Mb/s |
| Supports Energy Efficient Ethernet | 802.3az |
| 1 x PCI Express 3.0 x16 Slot (PCIE2 | x16 mode)* |
| 1 x PCI Express 3.0 | x1 Slot |
| X SPI TPM Header | 1 |
| X COM Port Header | 1 |
| X Chassis Intrusion and Speaker Header | 1 |
| X CPU Fan Connector (4-pin)* | 1 |
| 1 | x 24 pin ATX Power Connector |
| 1 | x 4 pin 12V Power Connector |
| X Front Panel Audio Connector | 1 |
| CHA_FAN2 can auto detect if | 3-pin or 4-pin fan is in use |

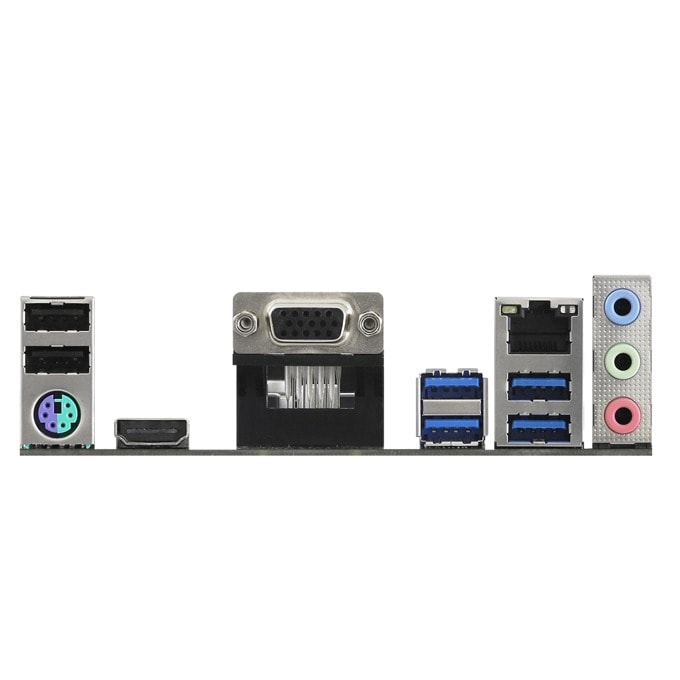

| X PS/2 Mouse/Keyboard Port | 1 |
| X D-Sub Port | 1 |
| X HDMI Port | 1 |
| X USB 2.0 Ports (Supports ESD Protection) | 2 |
| X USB 3.2 Gen1 Ports (Supports ESD Protection) | 4 |
| X RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | 1 |
| HD Audio Jacks | Line in / Front Speaker / Microphone |
| X SATA Data Cables | 2 |
| X Screw for M.2 Socket | 1 |
| Temperature Sensing | CPU, Chassis Fans |
| Fan Tachometer | CPU, Chassis Fans |
| Fan Multi-Speed Control | CPU, Chassis Fans |
| Voltage monitoring | +12V, +5V, +3.3V, CPU Vcore |
| Micro ATX Form Factor | 9.0-in x 7.9-in, 23.0 cm x 20.1 cm |
| Microsoft® Windows® | 10 64-bit |
