Дънна платка ASRock A520M-HDV

Артикул №: 1000018892

Категория: Дънни платки за AMD процесори

55,99 €

✓ Налично във външен склад

A520M-HDV

Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors
6 Phase Power Design

Premium	50A Power Choke
ASRock Ultra M.2 (PCIe Gen3	x4 & SATA3)
Power Phase design	6
Not compatible with AMD Ryzen™	5 3400G and Ryzen™ 3 3200G
X DDR4 DIMM Slots	2
Max. capacity of system memory	64GB
ACPI	5.1 compliance wake up events
SMBIOS	2.3 support
DirectX	12, Pixel Shader 5.0
Three graphics output options	D-Sub, DVI-D and HDMI
Supports DVI-D with max. resolution up to	1920x1200 @ 60Hz
Supports D-Sub with max. resolution up to	1920x1200 @ 60Hz
Supports HDR (High Dynamic Range) with HDMI	2.1
Supports HDCP	2.3 with DVI-D and HDMI 2.1 Ports
Supports	4K Ultra HD (UHD) playback with HDMI 2.1 Port
CH HD Audio (Realtek ALC887 Audio Codec)	7.1
PCIE	x1 Gigabit LAN 10/100/1000 Mb/s
Supports Energy Efficient Ethernet	802.3az
1 x PCI Express 3.0 x16 Slot (PCIE2	x16 mode)*
1 x PCI Express 3.0	x1 Slot
X SPI TPM Header	1
X COM Port Header	1
X Chassis Intrusion and Speaker Header	1
X CPU Fan Connector (4-pin)*	1
1	x 24 pin ATX Power Connector
1	x 4 pin 12V Power Connector
X Front Panel Audio Connector	1

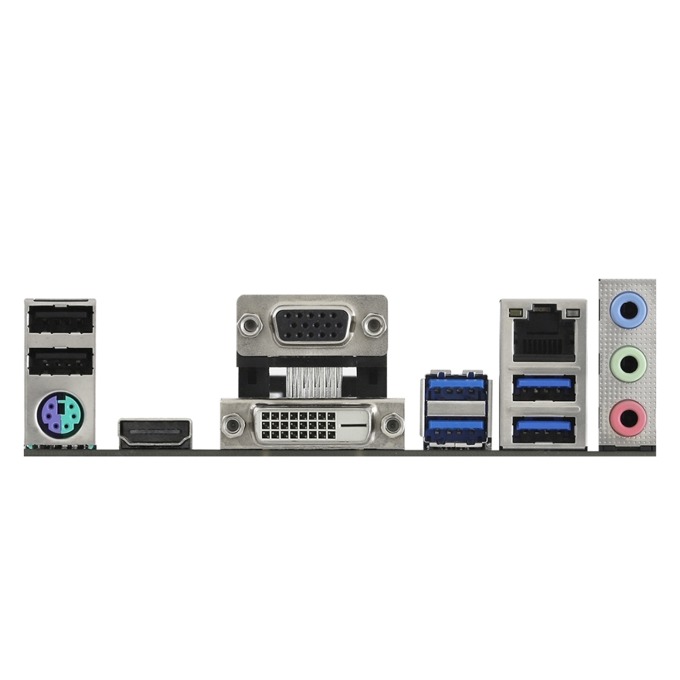

X PS/2 Mouse/Keyboard Port	1
X D-Sub Port	1
X DVI-D Port	1
X HDMI Port	1
X USB 2.0 Ports (Supports ESD Protection)	2
X USB 3.2 Gen1 Ports (Supports ESD Protection)	4
X RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)	1
HD Audio Jacks	Line in / Front Speaker / Microphone
X SATA Data Cables	2
X Screw for M.2 Socket	1
Temperature Sensing	CPU, Chassis Fans
Fan Tachometer	CPU, Chassis Fans
Fan Multi-Speed Control	CPU, Chassis Fans
Voltage monitoring	+12V, +5V, +3.3V, CPU Vcore
Micro ATX Form Factor	9.0-in x 7.9-in, 23.0 cm x 20.1 cm
Microsoft® Windows®	10 64-bit
