Ubiquiti

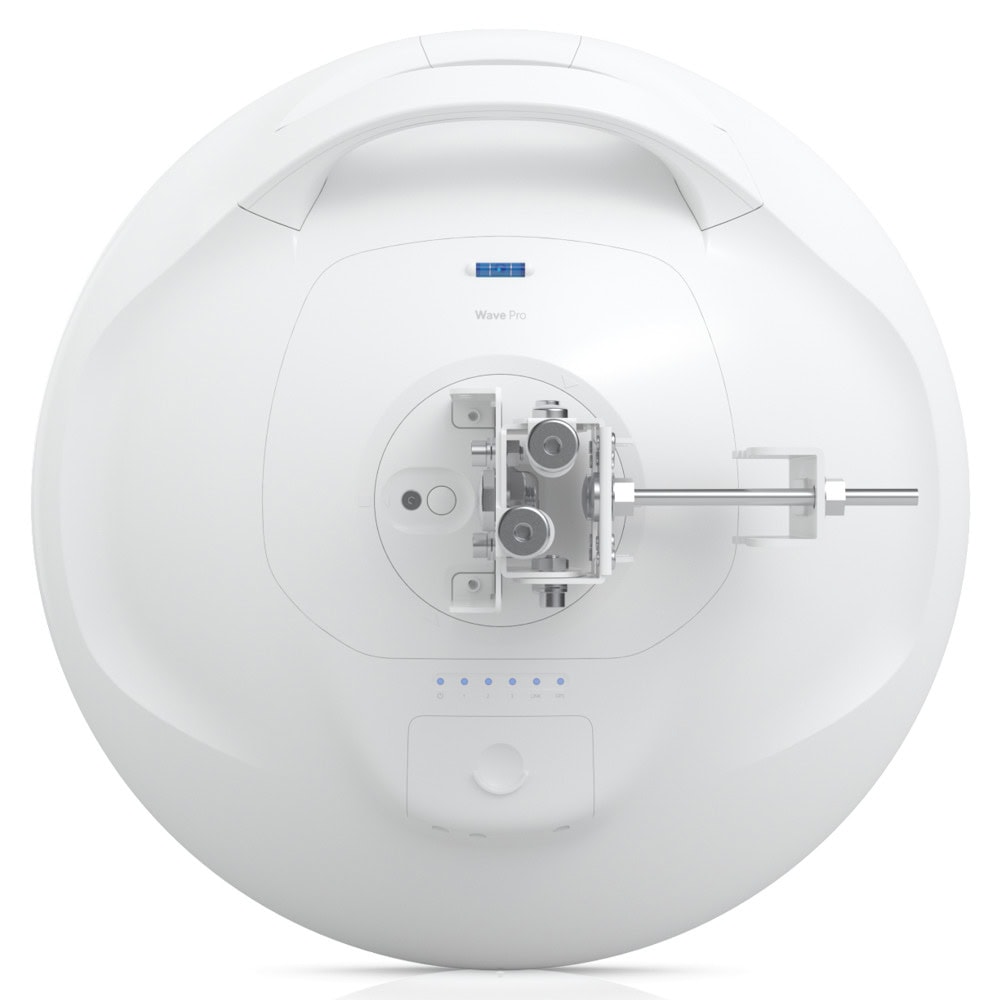

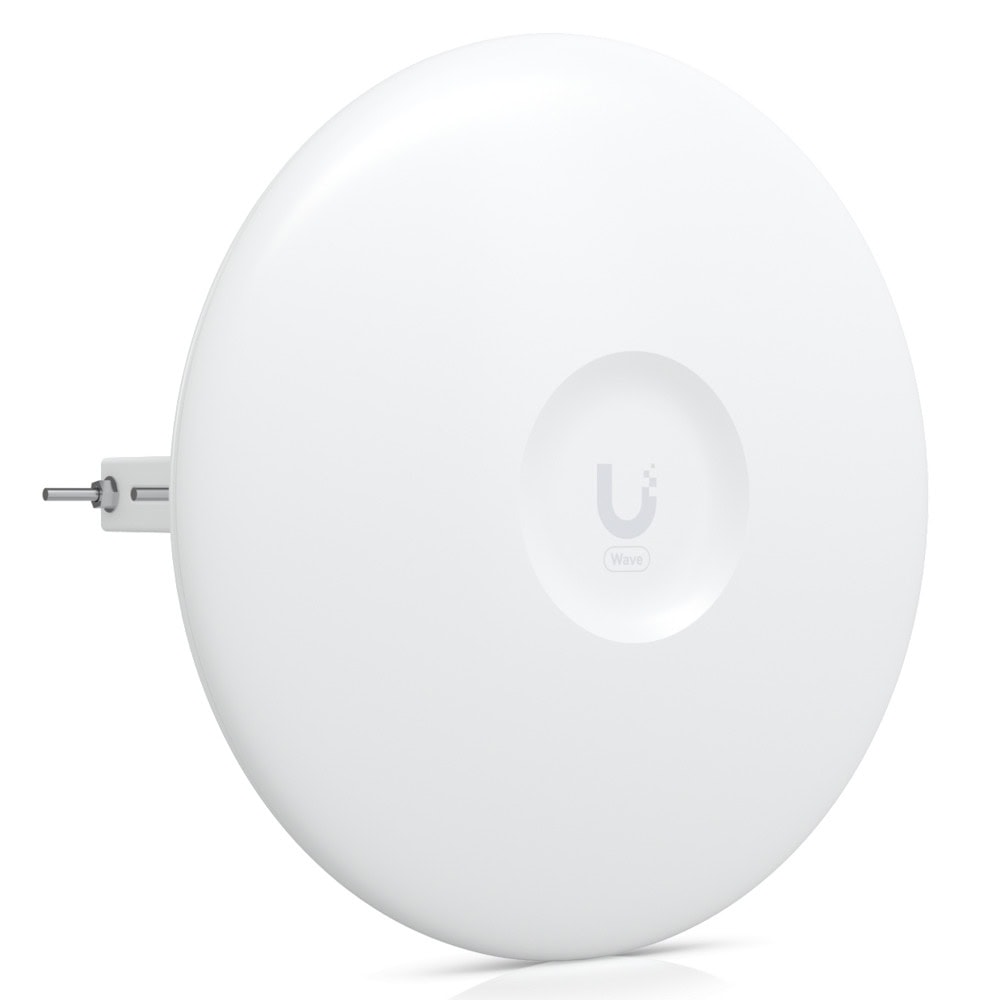

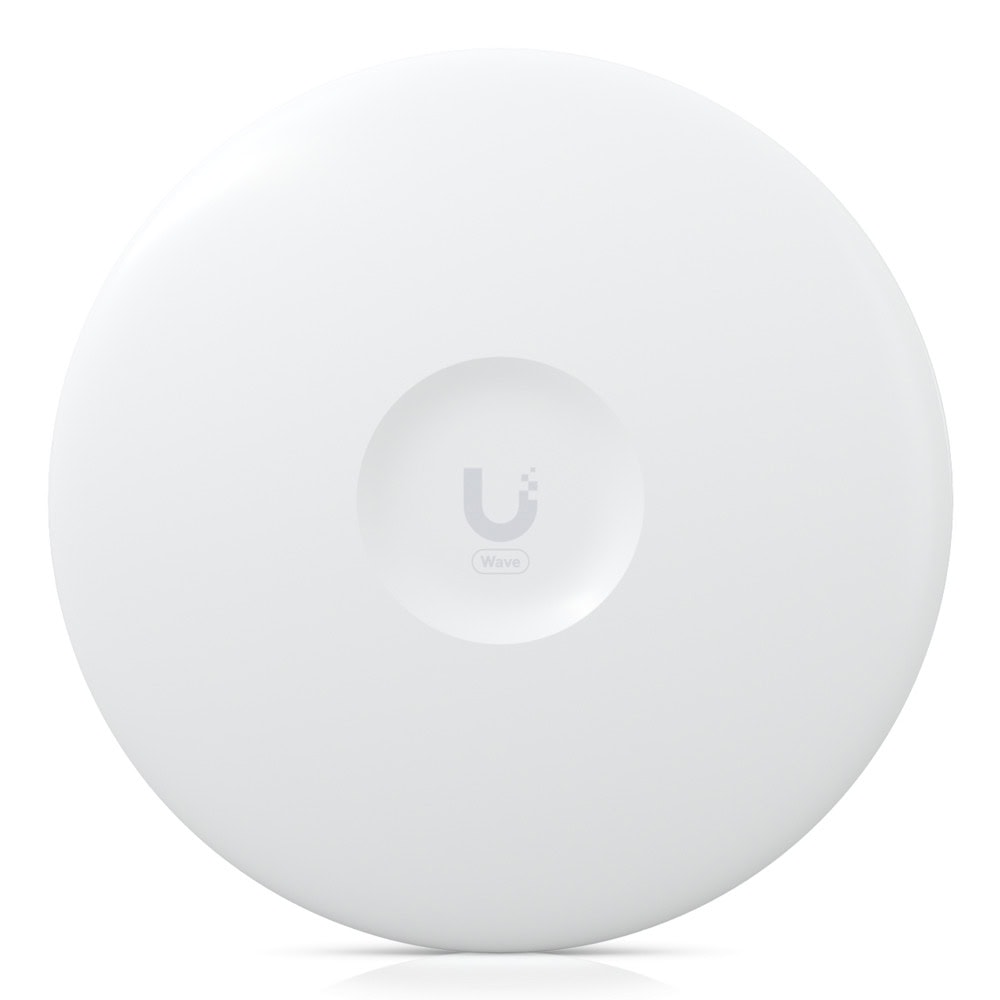

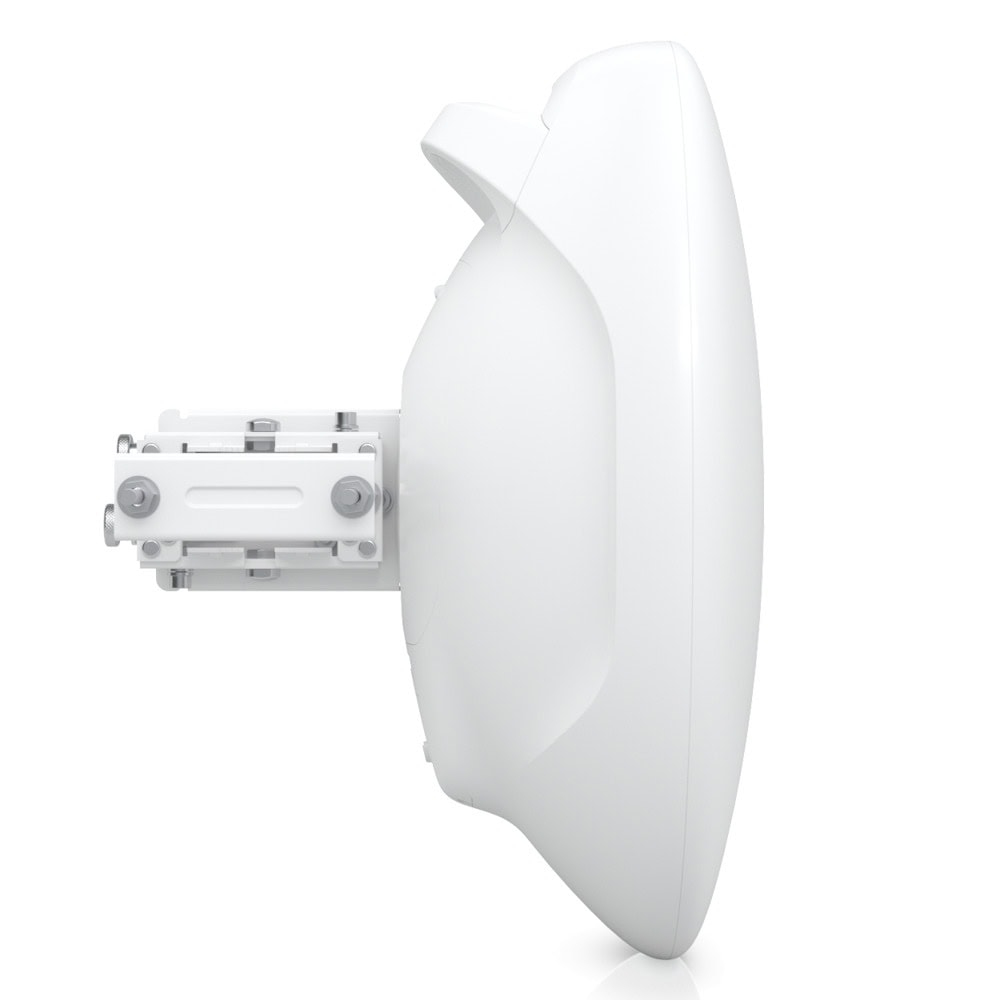

Антена Ubiquiti Wave Pro
Артикул №: 1000144058
Категория:
Мрежови адаптери
720,99 €
✓ Ограничена наличност
Характеристики
| WeightWithout mount | 2.8 kg (6.2 lb)With mount: 4 kg (8.8 lb) |
| Enclosure materialAluminum alloy, UV stabilized plastic | Да |
| Mount materialStainless steel | Да |
| Wind loading369 N at | 200 km/h (83 lbf at 125 mph) |
| WeatherproofingIPX6 | Да |
| ProcessorQuad-core ARM® Cortex®-A53 at | 1.4 GHz |
| MemoryDDR3L | 512 MB |
| Networking interface(2) | 2.5 GbE RJ45 ports (1) 10G SFP+ port |
| Max. power consumption26 W | Да |
| Power supply48V DC, | 0.65A, 2.5 GbE PoE adapter (Included) |
| Supported voltage range44–54V DC22–27V DC | Да |
| GPSYes | Да |
| ButtonFactory reset | Да |
| LEDsPower, (2) Ethernet, SFP+, GPS, link | Да |
| Ambient operating temperature-40 to | 60° C (-40 to 140° F) |
| Ambient operating humidity5 to | 95% noncondensing |
| CertificationsFCC, IC, CE | Да |
| NDAA CompliantYes | Да |
| Operating modePtP, PtMP station | Да |
| ServicesUISP, ping watchdog, NTP client, SNMP | Да |
| Application requirementsUISP | Version 2.3.0 and later |
| Total throughput5.4 Gbps | Да |
| Max. rangePtP | Up to 15 kmPtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro) |
| EncryptionWPA2-PSK (AES) | Да |
| Modulation16QAM, QPSK | Да |
| Antenna gain46 dBi | Да |
| PolarizationVertically linear | Да |
| BeamwidthAzimuth | 3 dB 1.3°Elevation: 3 dB 1.3° |
| WiFi Standard802.11ax (WiFi | 6) |
| Operating frequency*US/CA | U-NII-1 5150 - 5250 MHzU-NII-2A 5250 - 5350 MHzU-NII-2C 5470 - 5725 MHzU-NII-3 5725 - 5850 MHzWorldwide: 5150 - 5875 MHz*Depends on regulatory region. |
| Channel bandwidth20, | 40, 80 MHz |
| Max. conducted TX power27 dBm | Да |
| Antenna gain22 dBi | Да |
| PolarizationDual-linear | Да |
| BeamwidthAzimuth | 3 dB 8°Elevation: 3 dB 8° |
| Cross-pol isolation20 dB | Да |
| PowerFlashing white | bootup in progressWhite: not connected to UISP applicationBlue: connected to UISP applicationFlashing blue: locate in progressBlue/white: firmware upgrade in progress |
| Ethernet(2) Flashing blue | Ethernet traffic detected |
| SFP+(1) Flashing blue | SFP+ traffic detected |
| LinksWhite | 5 GHz linkBlue: 60 GHz link |
| GPSBlue | receiving at least (4) GPS satellite signal |
