Ubiquiti

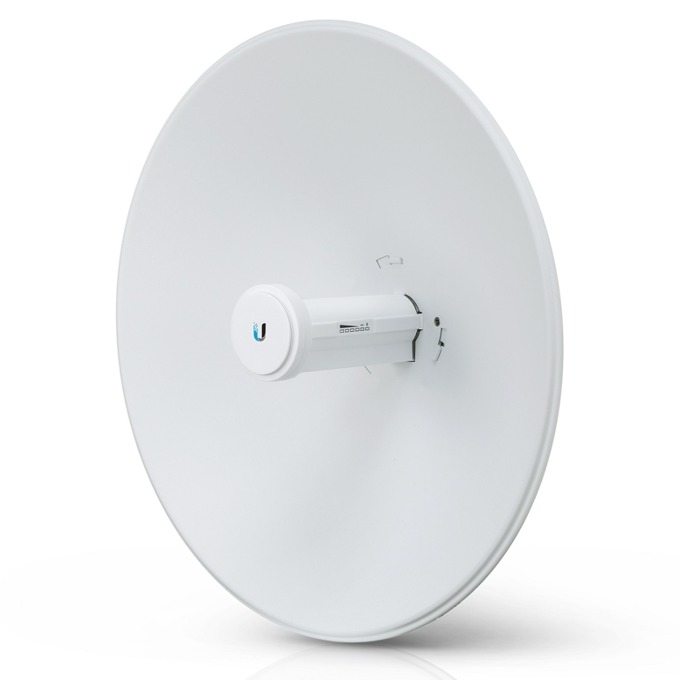

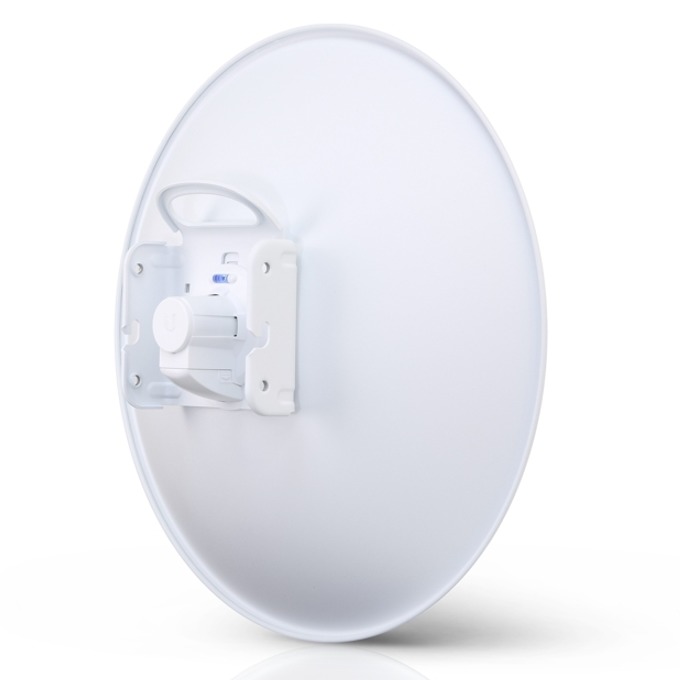

Антена Ubiquiti PowerBeam PBE-5AC-Gen2
Артикул №: 1000005764
Категория:
Безжични мрежи аксесоари
125,99 €
✓ Ограничена наличност
Ubiquiti PowerBeam PBE-5AC-Gen2
Specifications:
Dimensions
420 x 420 x 230 mm (16.54 x 16.54 x 9.06")
Weight
2.22 kg (4.89 lbs)
Power Supply
24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption
8.5W
Power Method
Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range
20 to 26VDC
Gain
25 dBi
Networking Interface
(1) 10/100/1000 Ethernet Port
Processor Specs
MIPS 74Kc
Memory
64 MB
LEDs
Power, Ethernet, (4) Signal Strength
Channel Sizes:
PtP Mode
10/20/30/40/50/60/80 MHz
PtMP Mode
10/20/30/40 MHz
Enclosure Characteristics
Antenna Feed:
Outdoor UV Stabilized Plastic
Dish Reflector:
Powder-Coated SPCC
Mounting
Pole-Mounting Kit (Included)
Wind Loading
380 N @ 200 km/h (85.4 lbf @ 125 mph)
Wind Survivability
200 km/h (125 mph)
ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature
-40 to 70° C (-40 to 158° F)
Operating Humidity
5 to 95% Noncondensing
RoHS Compliance
Yes
Salt Fog Test
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test
IEC 68-2-6
Temperature Shock Test
IEC 68-2-14
UV Test
IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Certifications
CE, FCC, IC
Specifications:
Dimensions
420 x 420 x 230 mm (16.54 x 16.54 x 9.06")
Weight
2.22 kg (4.89 lbs)
Power Supply
24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption
8.5W
Power Method
Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range
20 to 26VDC
Gain
25 dBi
Networking Interface
(1) 10/100/1000 Ethernet Port
Processor Specs
MIPS 74Kc
Memory
64 MB
LEDs
Power, Ethernet, (4) Signal Strength
Channel Sizes:
PtP Mode
10/20/30/40/50/60/80 MHz
PtMP Mode
10/20/30/40 MHz
Enclosure Characteristics
Antenna Feed:
Outdoor UV Stabilized Plastic
Dish Reflector:
Powder-Coated SPCC
Mounting
Pole-Mounting Kit (Included)
Wind Loading
380 N @ 200 km/h (85.4 lbf @ 125 mph)
Wind Survivability
200 km/h (125 mph)
ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature
-40 to 70° C (-40 to 158° F)
Operating Humidity
5 to 95% Noncondensing
RoHS Compliance
Yes
Salt Fog Test
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test
IEC 68-2-6
Temperature Shock Test
IEC 68-2-14
UV Test
IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Certifications
CE, FCC, IC
Характеристики
| X 420 x 230 mm (16.54 x 16.54 x 9.06") | 420 |
| Kg (4.89 lbs) | 2.22 |
| Passive PoE (Pairs | 4, 5+; 7, 8 Return) |
| To 26VDC | 20 |
| DBi | 25 |
| MIPS | 74Kc |
| MB | 64 |
| Channel Sizes | PtP Mode 10/20/30/40/50/60/80 MHz PtMP Mode 10/20/30/40 MHz Enclosure Characteristics |
| Antenna Feed | Outdoor UV Stabilized Plastic |
| Dish Reflector | Powder-Coated SPCC Mounting Pole-Mounting Kit (Included) Wind Loading 380 N @ 200 km/h (85.4 lbf @ 125 mph) Wind Survivability 200 km/h (125 mph) ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV Operating Temperature -40 to 70° C (-40 to 158° F) Operating Humidity 5 to 95% Noncondensing RoHS Compliance Yes Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 Vibration Test IEC 68-2-6 Temperature Shock Test IEC 68-2-14 UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 Certifications CE, FCC, IC |
