Антена UBIQUITI AM-2G16-90 2GHZ AIRMAX BASESTATION ROCKET KIT

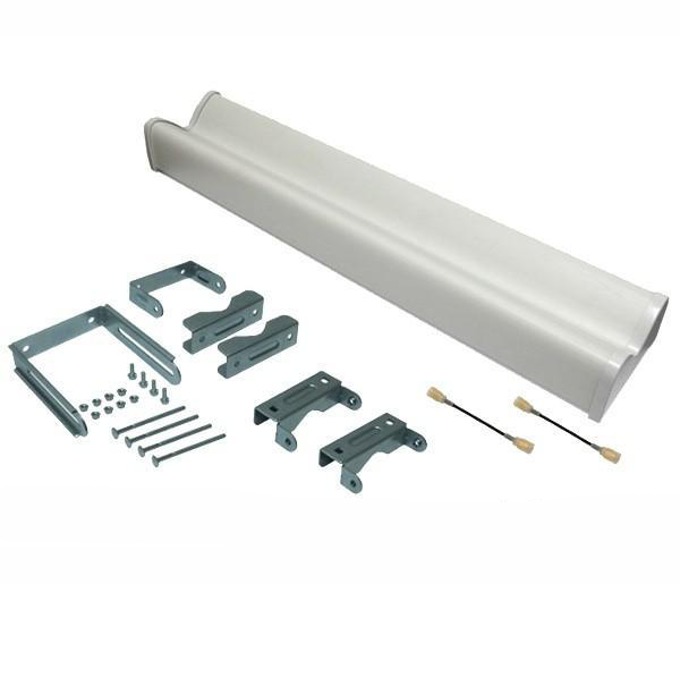

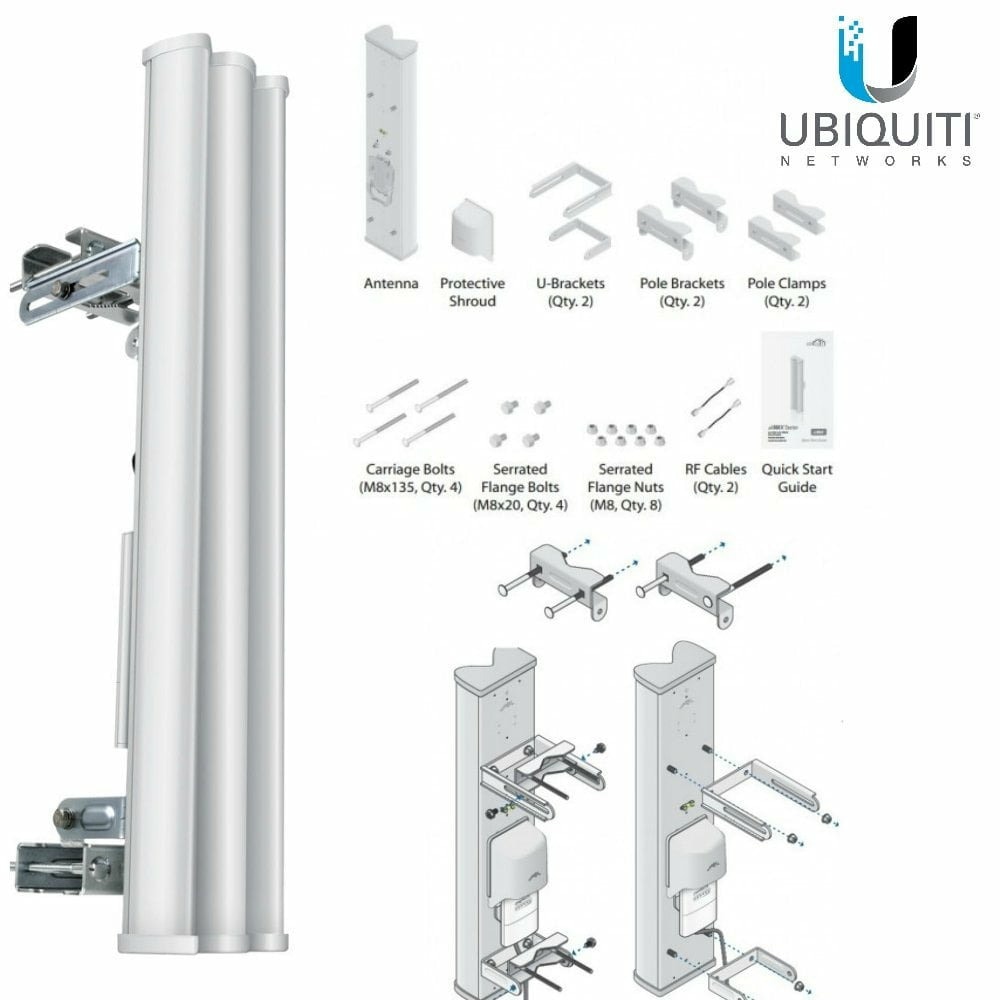

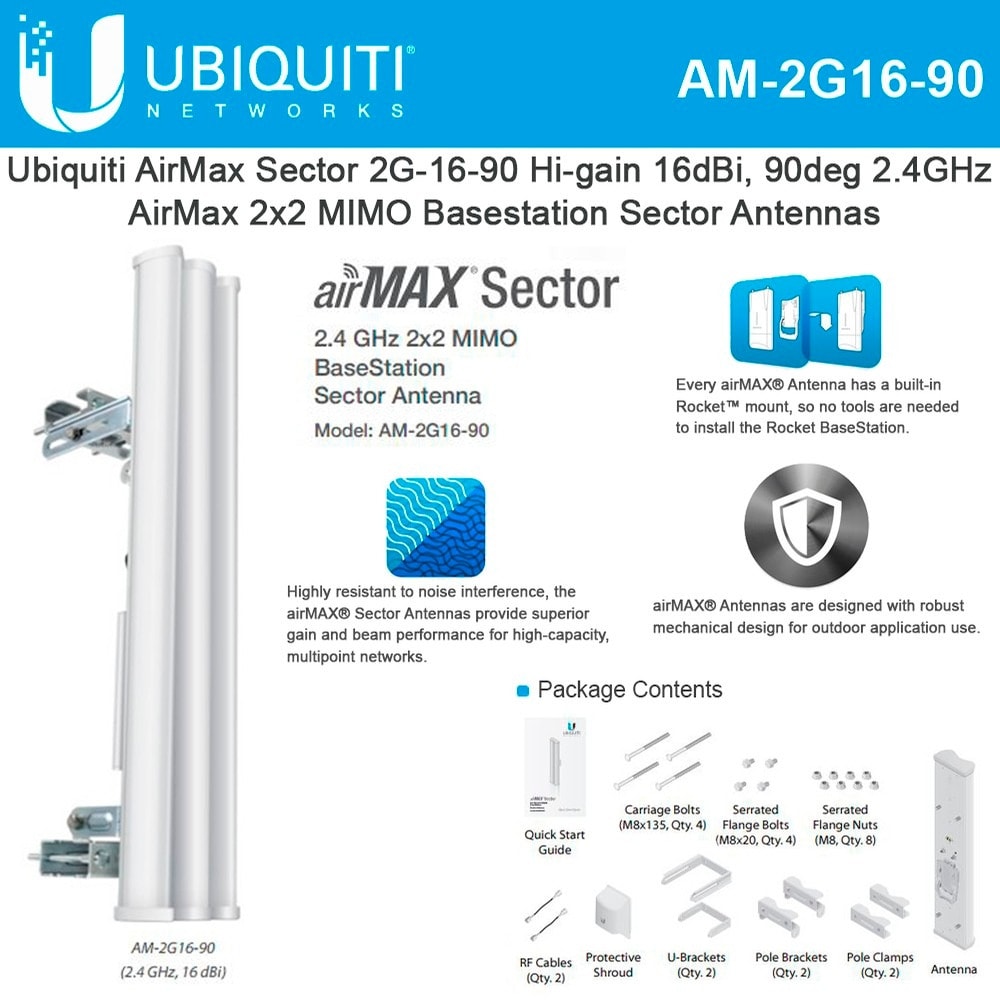

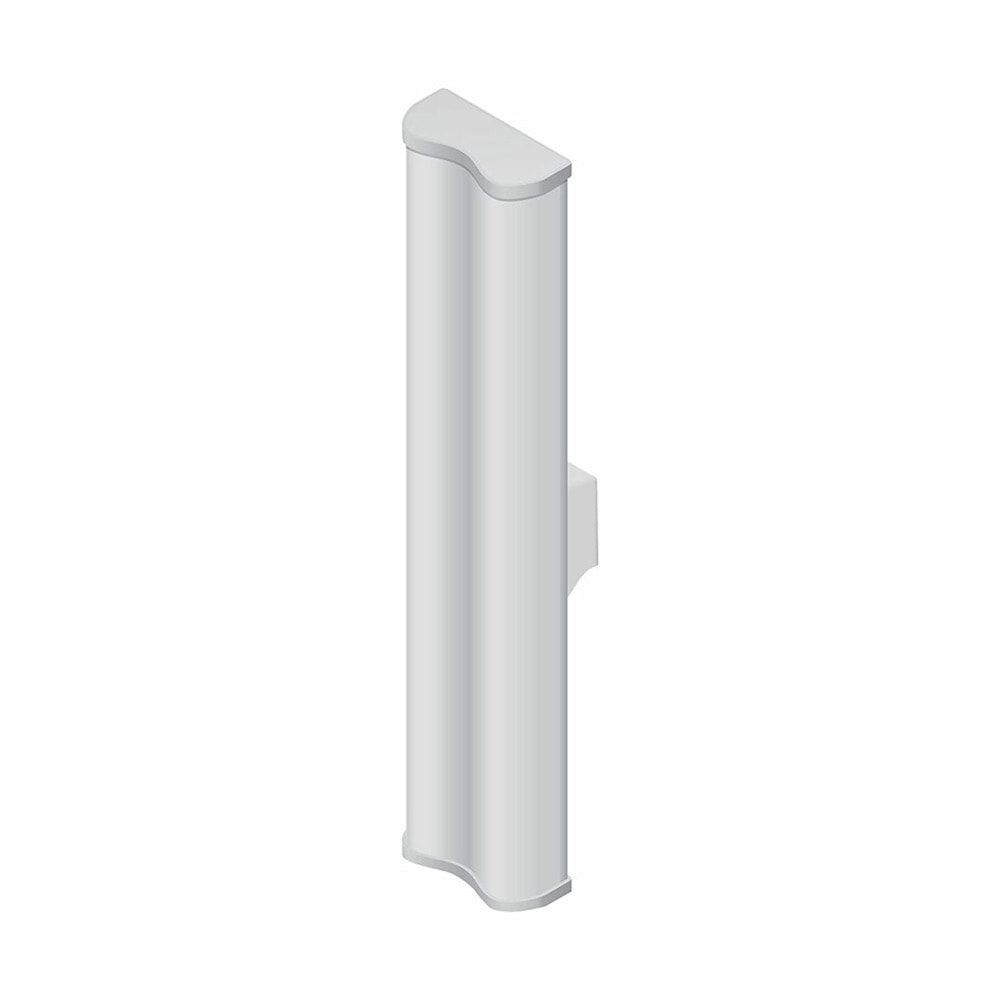

The AM-2G16-90 AirMAX 2.4 GHz 2x2 MIMO Sector Antenna from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 2.4 GHz frequency and offers a gain of 16 dBi. It delivers 2x2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots. Included along with the antenna are a pole mount, RocketM bracket, and weatherproof RF jumpers to make your base station building experience easier.
Cross-pol Isolation: 28dB min.
Hpol Beamwidth (6dB): 91 deg.
Vpol Beamwidth (6dB): 90 deg.
Elevation Beamwidth: 9 deg.
Electrical Downtilt: 4 deg.
Характеристики
| Intelligent QoS | Priority is given to voice/video for seamless streaming |
| Scalability | High capacity and scalability |
| Long Distance | Capable of high-speed, carrier-class links |
| Frequency Range | 2.3-2.7GHz |
| Gain | 16.0-17.0 |
| Polarization | Dual Linear |
| Cross-pol Isolation | 28dB min. |
| Max VSWR | 1.5:1 |
| Hpol Beamwidth (6dB) | 91 deg. |
| Vpol Beamwidth (6dB) | 90 deg. |
| Elevation Beamwidth | 9 deg. |
| Electrical Downtilt | 4 deg. |
| ETSI Specification | EN 302 326 DN2 |
| Размери | 700x145x79mm |
| Тегло | 3.9 kg |
| Windloading | 160 mph |
