Ubiquiti
Антена Ubiquiti AM-2G15-120
Артикул №: 1000131365
Категория:
Мрежови адаптери
142,99 €
✓ Налично във външен склад

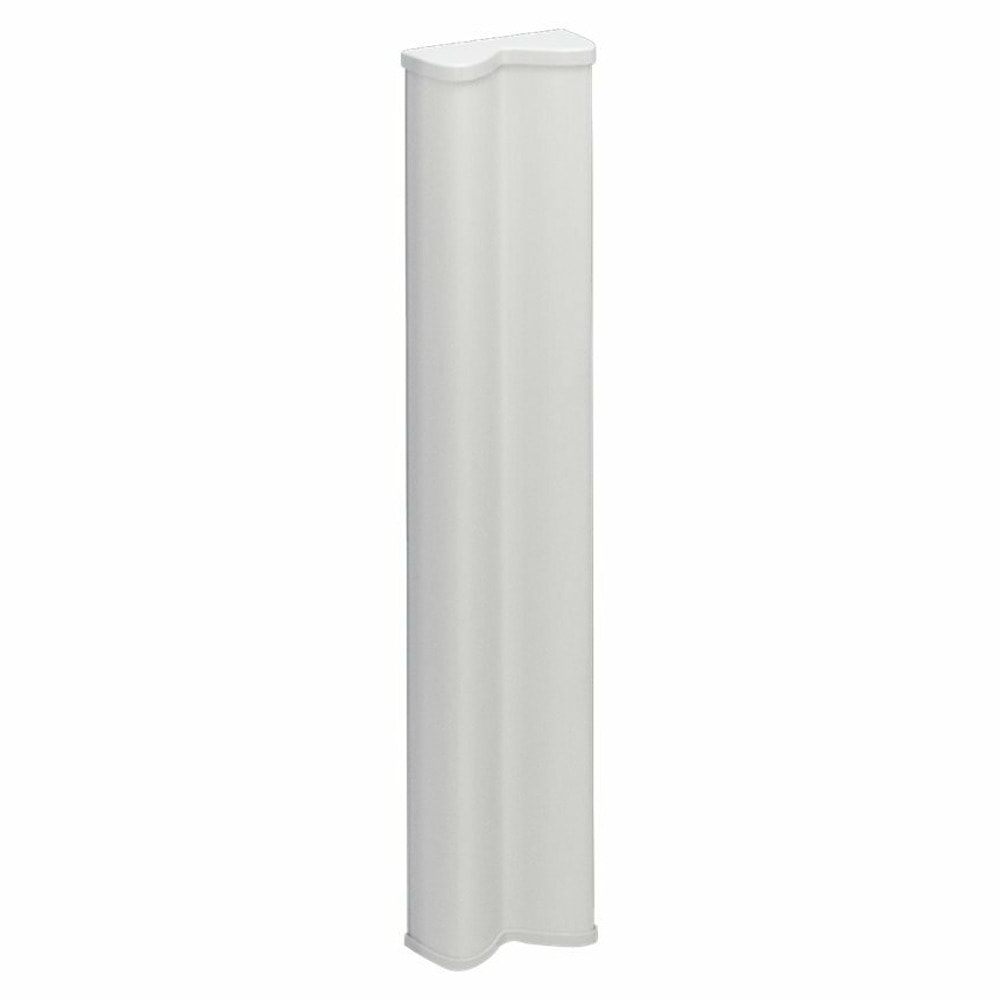

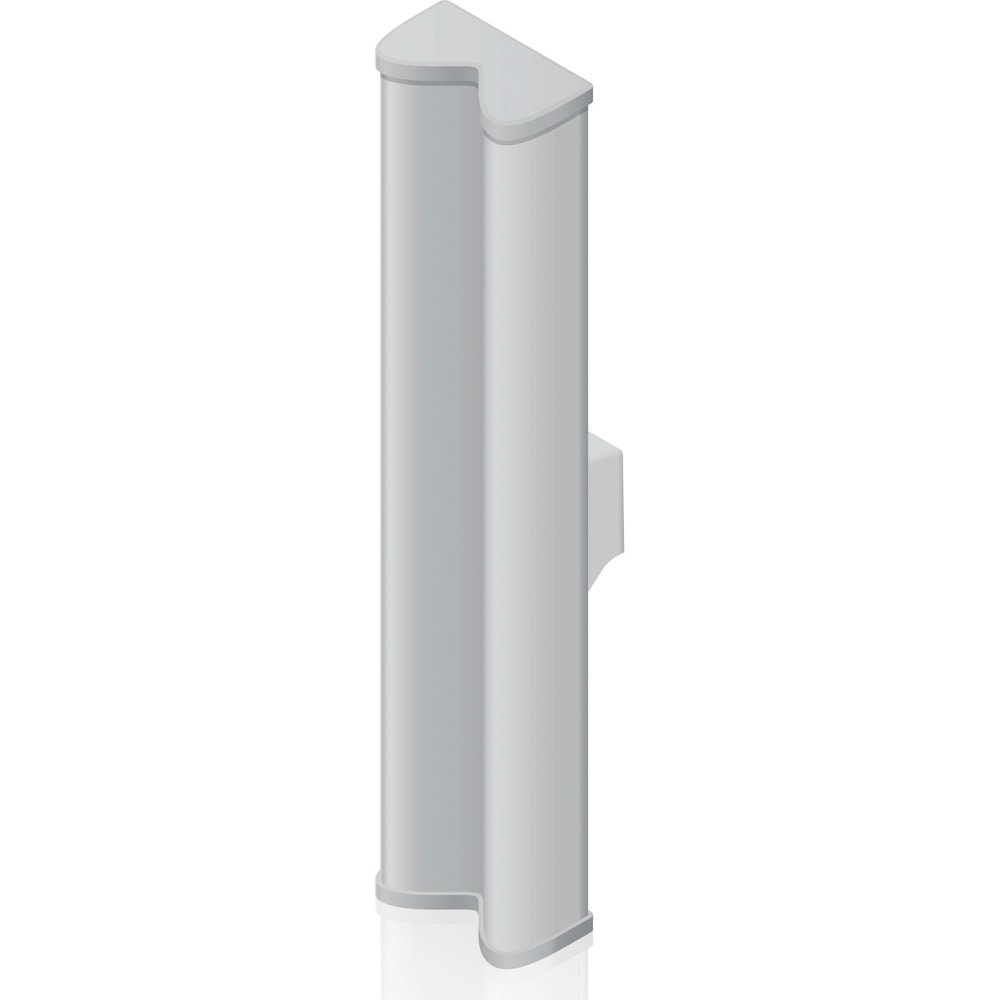

Ubiquiti AM-2G15-120
Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

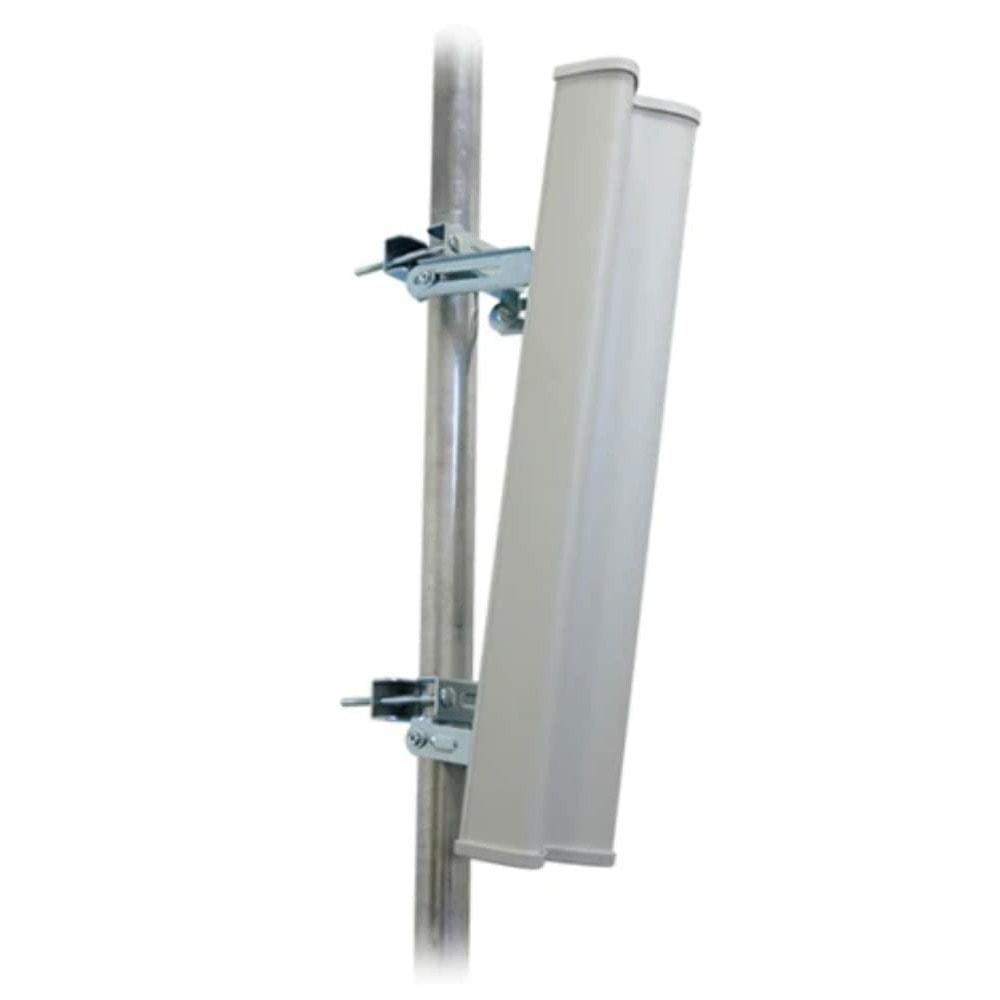

Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
Характеристики
| Weight*4.0 kg (8.82 lbs) | Да |
| Frequency Range2.3 - | 2.7 GHz |
| Gain15.0 - | 16.0 dBi |
| HPOL Beamwidth123° (6 dB) | Да |
| VPOL Beamwidth118° (6 dB) | Да |
| Electrical Beamwidth9° | Да |
| Electrical Downtilt4° | Да |
| Max. VSWR1.5 | 1 |
| Wind Survivability200 km/h (125 mph) | Да |
| Wind Loading169 N @ | 200 km/h (38 lbf @ 125 mph) |
| PolarizationDual-Linear | Да |
| Cross-pol Isolation28 dB Min | Да |
| ETSI SpecificationEN | 302 326 DN2 |
