Ubiquiti airFiber X Antenna
AF-3G26-S45
Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul.
Carrier-Class Construction

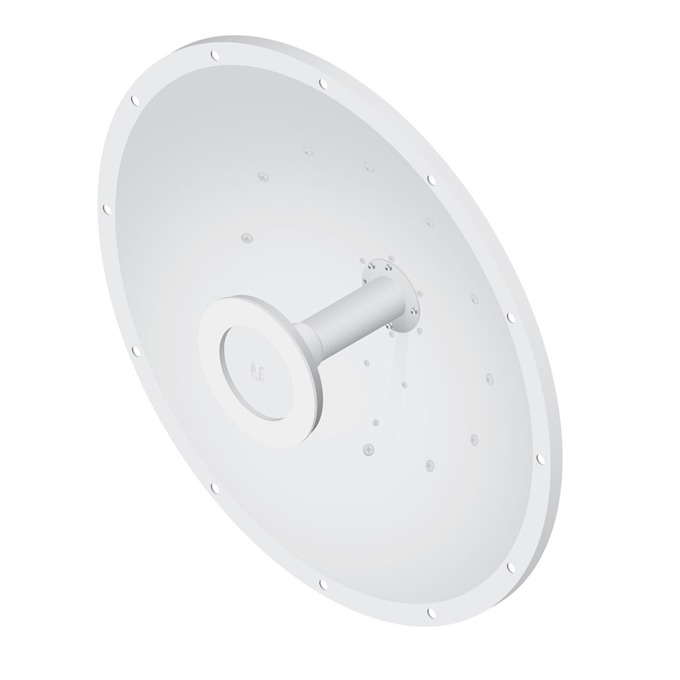

Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.
Weatherproof Design
Protects the cables and connectors from the elements.
Technical Specifications:
Frequency Range: 3.3 - 3.8 GHz
Gain: 26 dBi
+ 45° Beamwidth: 7° (3 dB)
- 45° Beamwidth: 7° (3 dB)
F/B Ratio: 33 dB
Max. VSWR: 1.4:1
Wind Loading: 787 N @ 200 km/h
Wind Survivability: 200 km/h (125 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 35 dB Min.

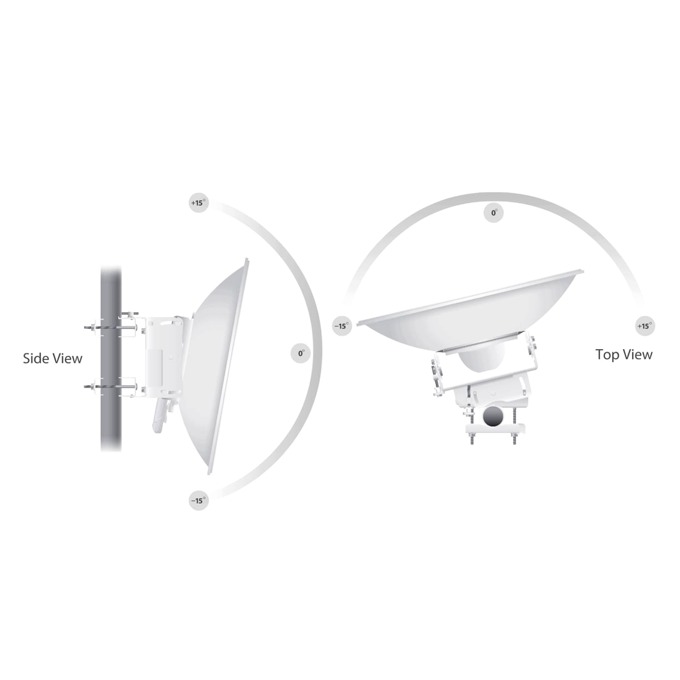

Mounting: Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included
AF-3G26-S45
Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul.
Carrier-Class Construction
Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.
Weatherproof Design
Protects the cables and connectors from the elements.
Technical Specifications:
Frequency Range: 3.3 - 3.8 GHz
Gain: 26 dBi
+ 45° Beamwidth: 7° (3 dB)
- 45° Beamwidth: 7° (3 dB)
F/B Ratio: 33 dB
Max. VSWR: 1.4:1
Wind Loading: 787 N @ 200 km/h
Wind Survivability: 200 km/h (125 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 35 dB Min.
Mounting: Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included
Технически характеристики
| Frequency Range | 3.3 - 3.8 GHz |
| Gain | 26 dBi |
| + 45° Beamwidth | 7° (3 dB) |
| - 45° Beamwidth | 7° (3 dB) |
| F/B Ratio | 33 dB |
| Max. VSWR | 1.4:1 |
| Wind Loading | 787 N @ 200 km/h |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Размери | 650 x 300 mm |
| Тегло | 9.8 kg |
