TP-Link
Антена TP-Link CPE710
Артикул №: 1000016196
Категория:
Безжични мрежи аксесоари
82,99 €
✓ Налично във външен склад
5GHz AC 867Mbps 23dBi Outdoor CPE
CPE710
- 802.11ac for up to 867Mbps on 5GHz wireless data rate
- 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation

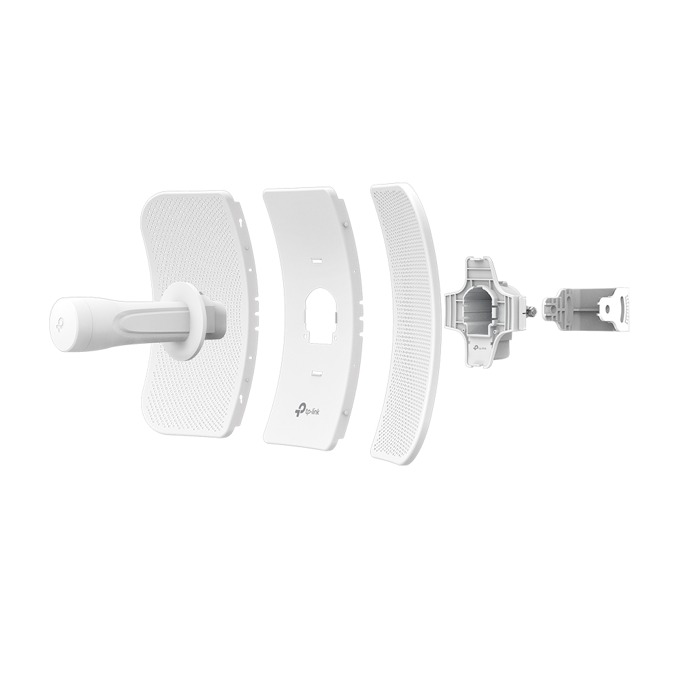

- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
(7).png "Антена TP-Link CPE710, 23 dBi, 5GHz(867Mbps), 1x 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE) - характеристика 1 | Безжични мрежи аксесоари")
Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.
(6).png "Антена TP-Link CPE710, 23 dBi, 5GHz(867Mbps), 1x 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE) - характеристика 2 | Безжични мрежи аксесоари")
ХАРДУЕРНИ ХАРАКТЕРИСТИКИ
| Процесор | Qualcomm 750MHz CPU, MIPS 74Kc |
| Памет | 128 MB DDR2 RAM, 16 MB Flash |
| Интерфейс | 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE) · 1 Reset Button |
| Захранване | Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) · Voltage range: 16-27V DC |
| Размери (Ш x Д x В ) | 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) |
| Усилване на антената | 23 dBi |
| Ширина на лъча на антената | 9° (Azimuth)/7° (Elevation) |
| Защита | 15 KV ESD Protection · 6 KV Lightning Protection |
| Корпус | Material: Outdoor PC stabilized plastic · Weatherproof: IP65 water and dust proof design |
БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ
| Безжични стандарти | IEEE 802.11a/n/ac |
| Безжични скорости | Up to 867 Mbps (80 MHz, Dynamic) · Up to 400 Mbps (40 MHz, Dynamic) · Up to 173.4 Mbps (20 MHz, Dynamic) |
| Честотa | 5.15~5.85 GHz |
| Предавателна мощност | Max. 27 dBm (Adjustable power by 1dBm) |
СОФТУЕРНИ ХАРАКТЕРИСТИКИ
| Мрежова конфигурация | WAN: Static/ Dynamic/ PPPoE · LAN: Static/ Dynamic/ DHCP · Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger · Security: SPI Firewall/ Ping Forbidden/ DoS Protection · Access Control · Static Routing · Bandwidth Control · IP & MAC Binding |
| Безжични конфигурации | Selectable Channel Width: 20/40/80MHz · Auto Channel Selection · Transmit Power Control · Dynamic Frequency Selection(DFS) · WDS Enable/ Disable · Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, · SSID Broadcast Enable/ Disable · Multi-SSID with VLAN Tagging(AP Mode only) · Distance/ ACK Timeout Setting · Wireless MAC Address Filter · Wireless Advanced: · Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia · Long Range PtP |
| Управление | Discovery and Remote Management via Pharos Control application · HTTP/ HTTPS Web-based management · System log · SNMP Agent(v2c) · Ping Watch Dog · Dynamic DDNS · SSH Server |
| Системни инструменти | Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory · Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP · Spectrum Analyzer · Speed Test · Ping · Traceroute · Antenna Alignment |
| Оптимизации на системно ниво | Optimized IGMP Snooping / Proxy for multicast applications |
POE ADAPTER FEATURES
| Размери(W x D x H) | 85.8×43.9×29.7 mm |
| Interfaces | 1 AC Jack with Earth Ground · 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data) · 1× 10/100/1000 Mbps Shielded Ethernet Port (Data) |
| Button | Remote Reset Button |
| Power Status LEDs | Зелен |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 0.5A Max · +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Efficiency | >84.29% |
| Сертификати | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
ДРУГИ
| Сертификати | CE, FCC, RoHS, IP65, IC |
| Съдържание на пакета | Outdoor Wireless CPE · 24V 0.5A Passive PoE Adapter · Pole Mounting Kits · AC Power Cord · Installation Guide |
| Системни изисквания | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. · Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended |
| Околна среда | Operating Temperature: -40℃~70℃ (-40℉~158℉) · Storage Temperature: -40℃~70℃ (-40℉~158℉) · Operating Humidity: 10%~90% non-condensing · Storage Humidity: 5%~95% non-condensing |
