HanBang

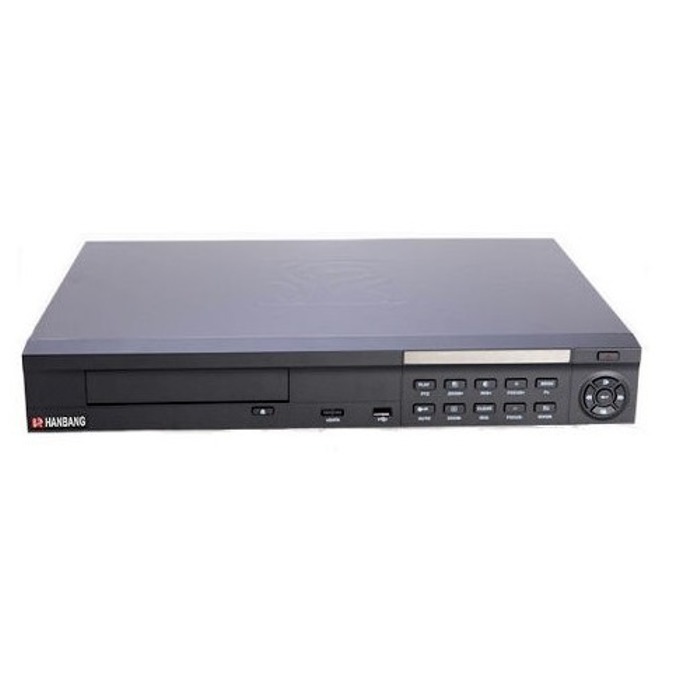

Аналогов HD (AHD) видеорекордер HangBang HB7916X3-L
Артикул №: 1000011626
Категория:
DVR Записващи устройства
118,99 €
✓ Ограничена наличност
HangBang
HB7916X3-L
Model description 16 ch economy
Mainboard 4 layer board, single ethernet interface with on board
Network video input bandwith 40M
Network video input total number 16 ch
Record resolution 1080p/UXGA/720p/VGA/960H/D1
Housing XT housing(1.5U)
Panel Key base
Preview channels 16
Playback 4*1080P
CVBS video output 1*BNC
Audio output 1*RCA
HB7916X3-L
Model description 16 ch economy
Mainboard 4 layer board, single ethernet interface with on board
Network video input bandwith 40M
Network video input total number 16 ch
Record resolution 1080p/UXGA/720p/VGA/960H/D1
Housing XT housing(1.5U)
Panel Key base
Preview channels 16
Playback 4*1080P
CVBS video output 1*BNC
Audio output 1*RCA
Характеристики
| Panel Key base | Preview channels 16 |
| Playback 4*1080P | CVBS video output 1*BNC |
| Audio output 1*RCA | Intercom(3mm) 1 |
| VGA(DB15) 1 | HDMI 1 |
| USB 2(Front and rear each one) | SATA 2 |
| eSATA N/A | SATA DVD burner N/A |
| RAID N/A | Ethernet RJ45 1000M |
| UPNP Ethernet interface 0 | Alarm Input 0 |
| Alarm Output 0 | +12V Ouput （For alarm input） 0 |
| RS232 0 | RS485 1（half-duplex） |
| IR extension line Support | Power supply 12V 40W |
| Power switch 1 | Housing demension 1.5U |
| IR remote contoller Support | HB3.0 √ |
| ONVIF √ | PSIA ╳ |
| GB28181 √ | CCC √ |
| CE √ | FCC √ |
