TP-Link
Аксес пойнт TP-LINK CPE605
Артикул №: 1000014909
Категория:
Аксеспойнт/Репитер Безжични
54,99 €
✓ Ограничена наличност
5GHz 150Mbps 23dBi Outdoor CPECPE605
- Up to 150Mbps on 5GHz wireless data rates
- 23dBi high-gain directional antenna and a dedicated metal reflector, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation

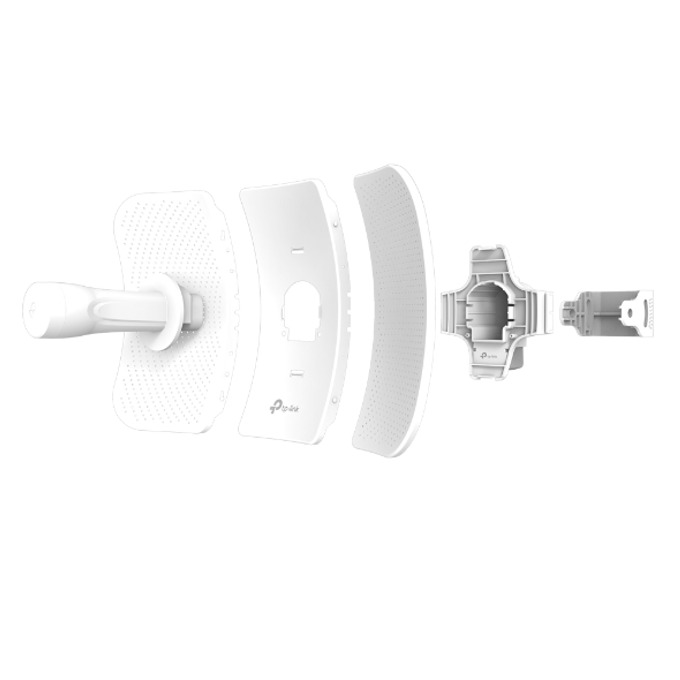

- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE605 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
- TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
ХАРДУЕРНИ ХАРАКТЕРИСТИКИ
| Процесор | Qualcomm 560MHz CPU, MIPS 74Kc |
| Памет | 64MB DDR2 RAM,8MB Flash |
| Интерфейс | 1 10/100Mbps Shielded Ethernet Port (LAN/POE) · 1 Reset Button |
| Захранване | Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) · Voltage range: 16-27VDC |
| Размери (Ш x Д x В ) | 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.) |
| Усилване на антената | 23dBi |
| Ширина на лъча на антената | 7°(Azimuth), 10°(Elevation) |
| Защита | 15KV ESD Protection · 6KV Lightning Protection |
| Корпус | Material: Outdoor PC stabilized plastic · Weatherproof: IP65 water and dust proof design |
БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ
| Безжични стандарти | IEEE 802.11a/n |
| Собствен протокол | TDMA Mode (with Pharos MAXtream enabled) |
| Безжични скорости | Up to 150Mbps (40MHz,Dynamic) · Up to 72.2Mbps (20MHz,Dynamic) · Up to 36.1Mbps (10MHz,Dynamic) · Up to 18.05Mbps (5MHz,Dynamic) |
| Честотa | 5.15~5.85GHz |
| Предавателна мощност | Max. 23dBm (Adjustable power by 1dBm) |
СОФТУЕРНИ ХАРАКТЕРИСТИКИ
| IPv6 | Да |
| Мрежова конфигурация | WAN: Static/Dynamic/PPPoE/L2TP/PPTP · LAN: Static/Dynamic/DHCP · Forwarding: ALG/UPnP/Virtual Server/Port Trigger · Security: SPI Firewall/ Ping Forbidden/DoS Protection · Access Control · Static Routing · Bandwidth Control · IP & MAC Binding |
| Безжични конфигурации | Pharos MAXtream TDMA Technology · Selectable Channel Width: 5/10/20/40MHz · Auto Channel Selection · Transmit Power Control · Dynamic Frequency Selection(DFS) · WDS Enable/Disable · Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, · 64/128/152-bit WEP Encryption · SSID Broadcast Enable/Disable · Multi-SSID with VLAN Tagging(AP Mode only) · Distance/ACK Timeout Setting · Wireless MAC Address Filter · Wireless Advanced: · Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia · Long Range PtP |
| Управление | Discovery and Remote Management via Pharos Control application · HTTP/HTTPS Web-based management · System log · SNMP Agent(v2c) · Ping Watch Dog · Dynamic DDNS · SSH Server |
| Системни инструменти | Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory · Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP · Spectrum Analyzer · Speed Test · Ping · Traceroute · Antenna Alignment |
| Оптимизации на системно ниво | Optimized IGMP Snooping/Proxy for multicast applications |
ДРУГИ
| Сертификати | CE, FCC, RoHS, IP65 |
| Съдържание на пакета | Outdoor Wireless CPE · 24V 0.25A Passive PoE Adapter · Pole Mounting Kits · AC Power Cord · Installation Guide |
| Системни изисквания | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. · Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended |
| Околна среда | Operating Temperature: -40℃~70℃ (-40℉~158℉) · Storage Temperature: -40℃~70℃ (-40℉~158℉) · Operating Humidity: 10%~90% non-condensing · Storage Humidity: 5%~95% non-condensing |
